Variants – 3.0 V6 24VDescription · page 11 of 14

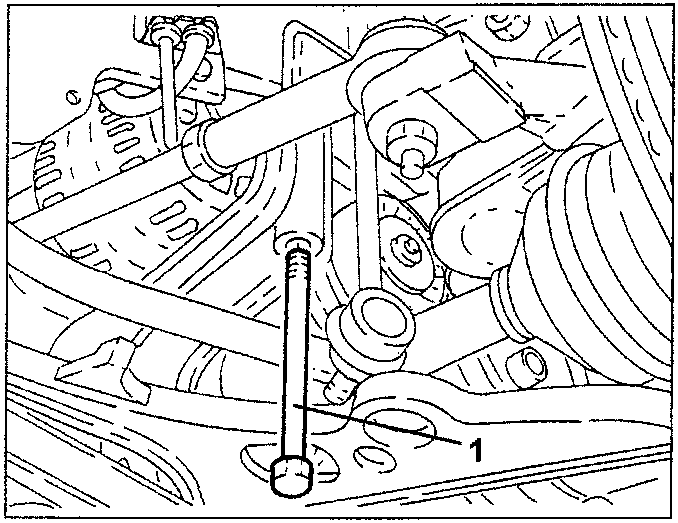

  1. Loosen the side screws fastening the crossmember to the underbody.
Crossmember with side screws fastened to underbody

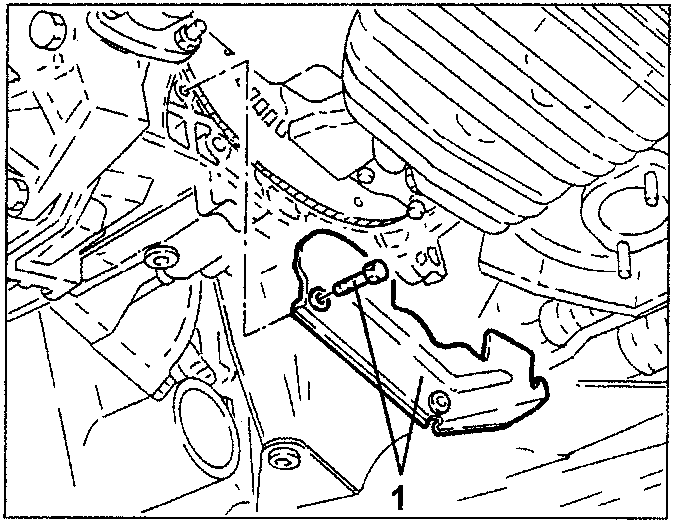

  1. Loosen the fastening screws and remove the flywheel guard.
Flywheel guard being removed

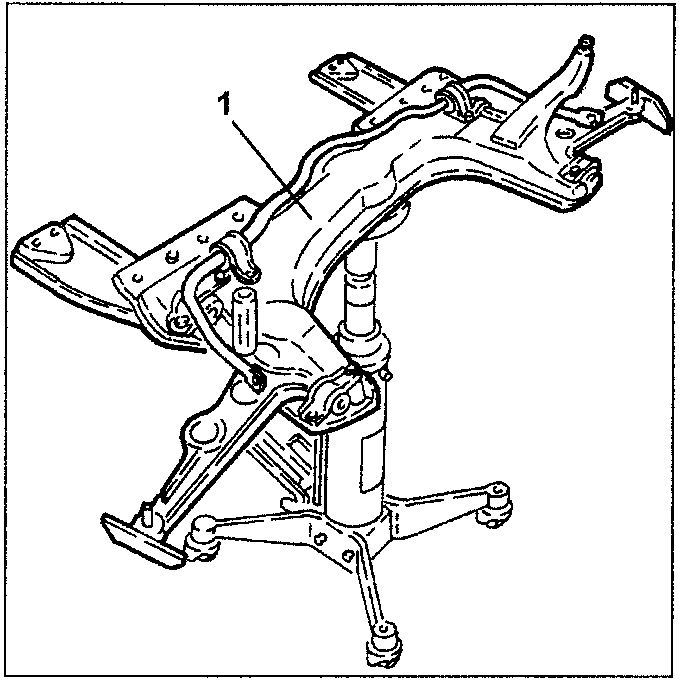

  1. Lower the hydraulic jack and remove the crossmember with wishbones, stabiliser and reinforcements.
Crossmember with wishbones, stabiliser and reinforcements

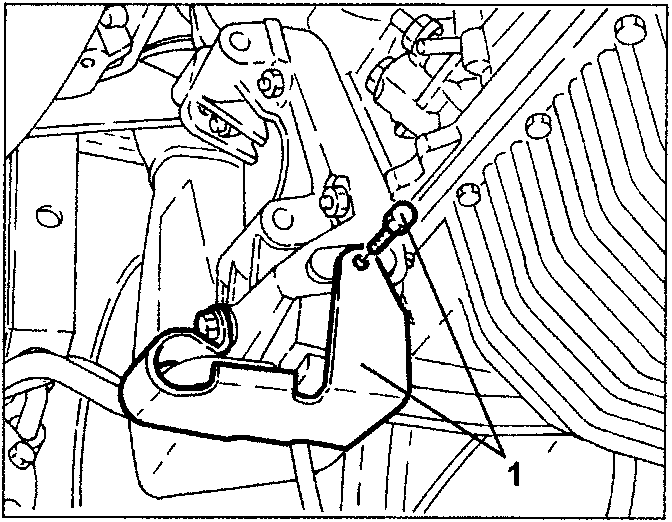

  1. Loosen the fastening screws and remove the cooling radiator engine oil delivery and return pipe bracket.
Cooling radiator engine oil delivery and return pipe bracket
