Description (page 13 of 14)

• Release the electrical wires from any clips and move them away from the engine so that they will not get caught when the engine is removed.
• Lower the hydraulic jack completely and remove the engine from the engine compartment.

IMPORTANT: The hydraulic jack must have a payload of at least 1000 kg. When lowering the engine, make sure no wires or pipes are still connected. Be careful not to damage any components.

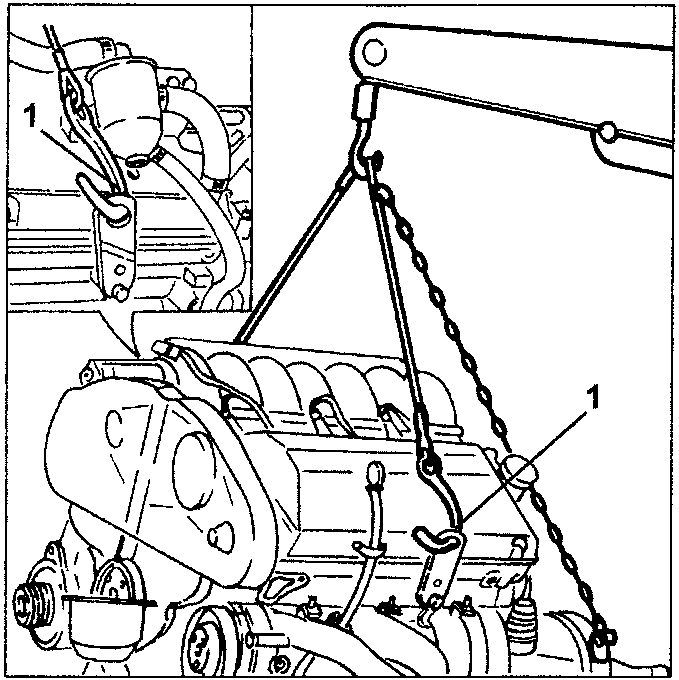

1. Support the engine with the hydraulic jack used for removal and with a hydraulic crane as shown in the figure.

IMPORTANT: Use a hydraulic crane to move the engine after releasing it from the hydraulic jack.

• Lower the hydraulic crane and position the engine on a specific engine stand.

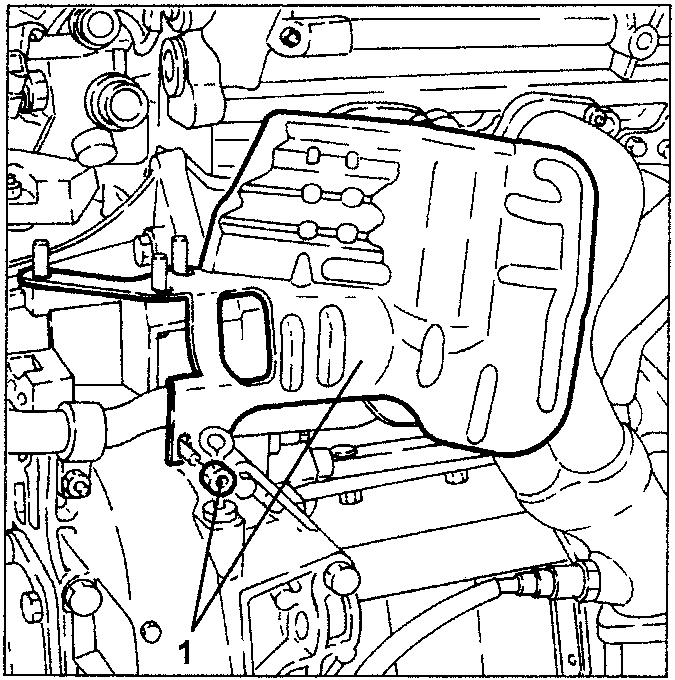

1. Loosen the fastening nut and remove the upper firewall from the right-hand exhaust manifold.

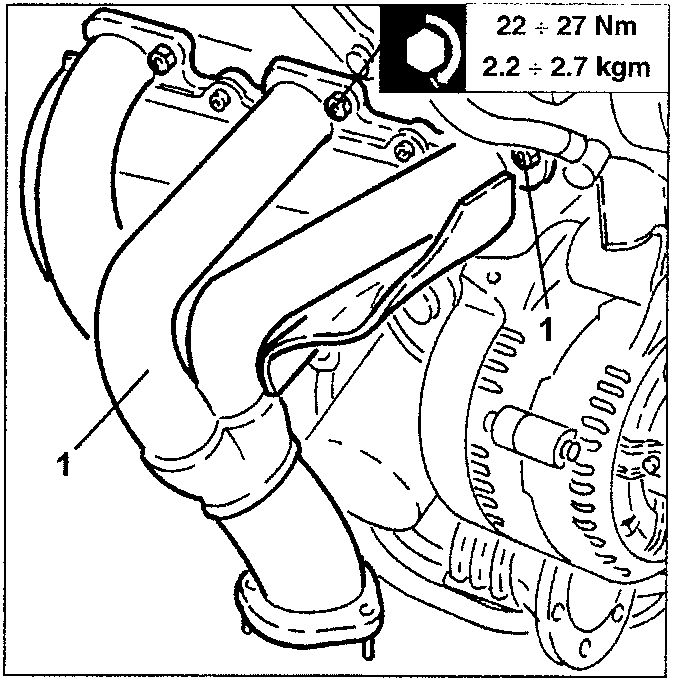

1. Loosen the fasteners and remove the right-hand exhaust manifold and starter motor firewall.

• Remove the respective seals.

22 ÷ 27 Nm
2.2 ÷ 2.7 kgm
