Description (page 12 of 14)

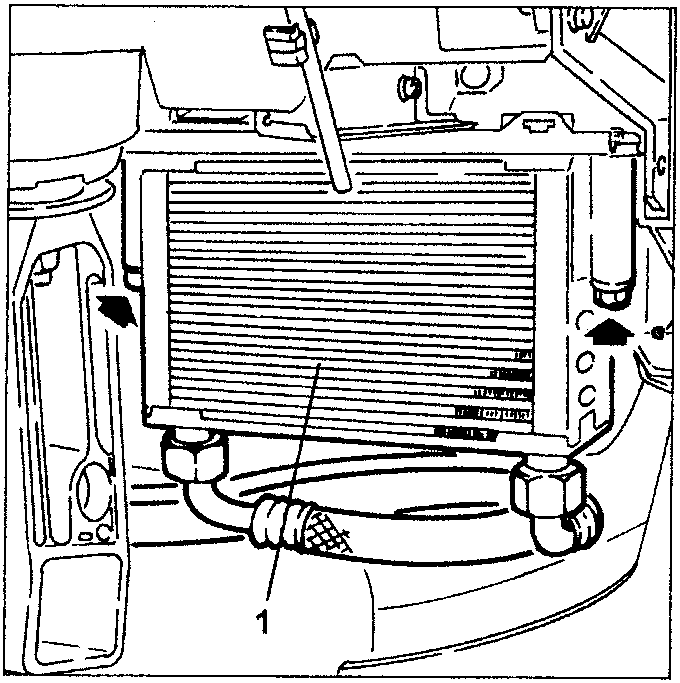

1. Loosen the fastening screws and remove the engine oil radiator from the bracket. Then fasten it to the engine as not to obstruct the following operations without disconnecting it.

NOTE: Position the hydraulic jack in the central hole in tool 1.820.225.000 to ensure the engine is balanced correctly on the fixture.

2. Fasten the fixture to the engine.

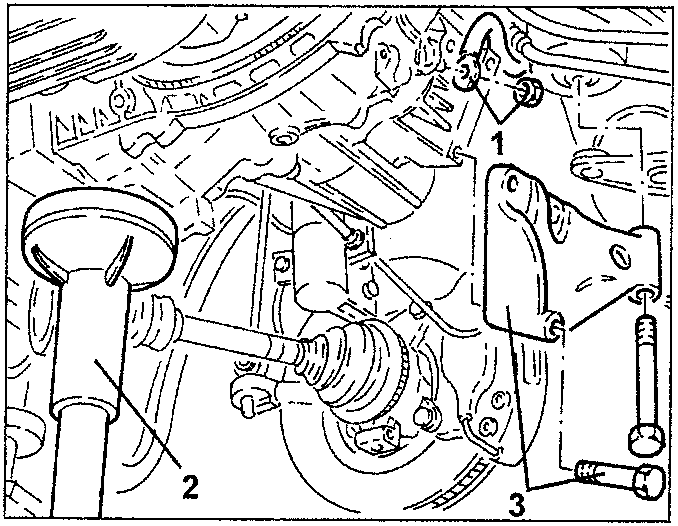

1. Disconnect the gearbox earth braid.
2. Position a hydraulic jack under the differential.
3. Loosen the screws and remove the gearbox bracket on engine side.

• Remove the hydraulic jack from under the differential.

• Release the engine safety fixture tie-rods from the cylinder head brackets.

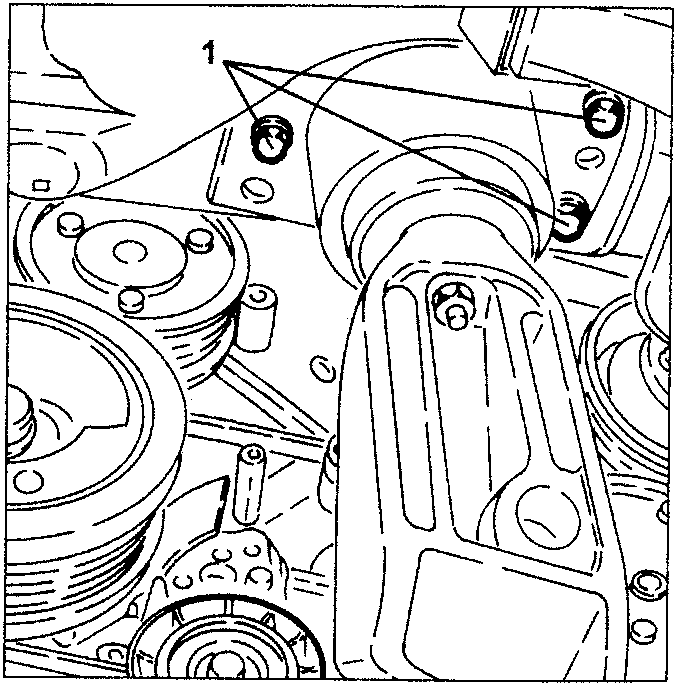

1. Loosen the engine stiff rubber mount fastening screws, timing side.

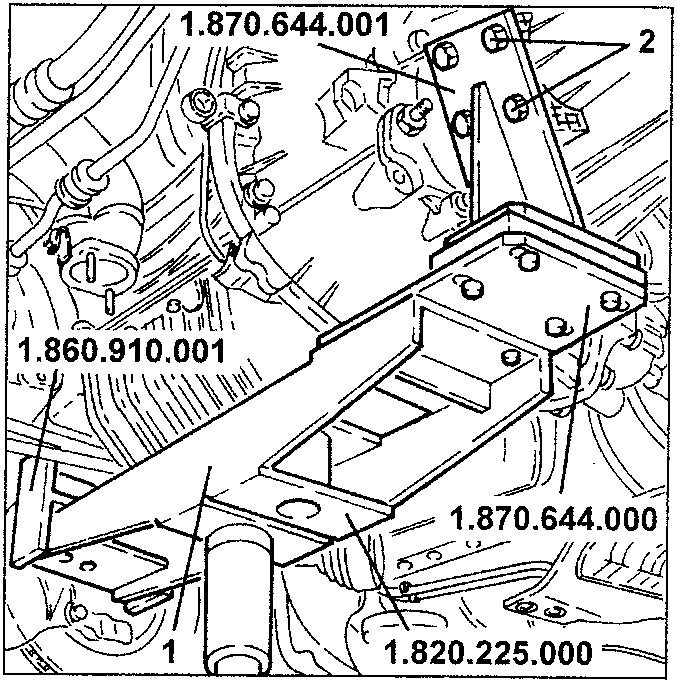

1. Position tool no. 1.820.225.000 with tools no. 1.870.644.000, no. 1.870.644.001 and no. 1.860.910.001 on the hydraulic jack.
