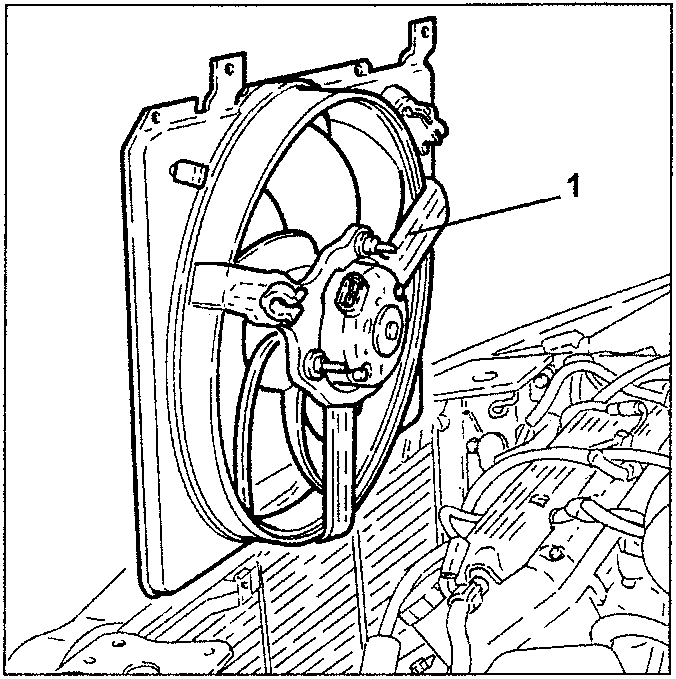

1. Move the radiator aside just enough to remove the engine cooling fan.

• Provisionally refit the engine cooling radiator upper screws.

• Empty the power steering oil reservoir with a suitable syringe.

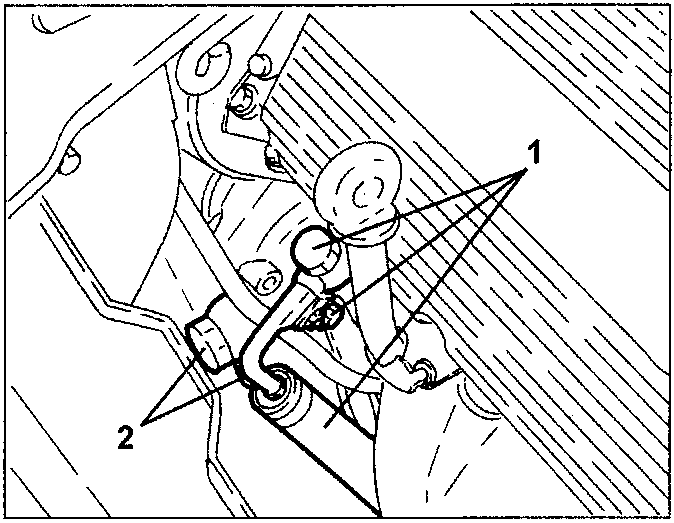

1. Loosen the screw and the fitting. Then disconnect the power steering pump oil delivery pipe.
2. Loosen the fitting and disconnect the power steering pump oil intake pipe.

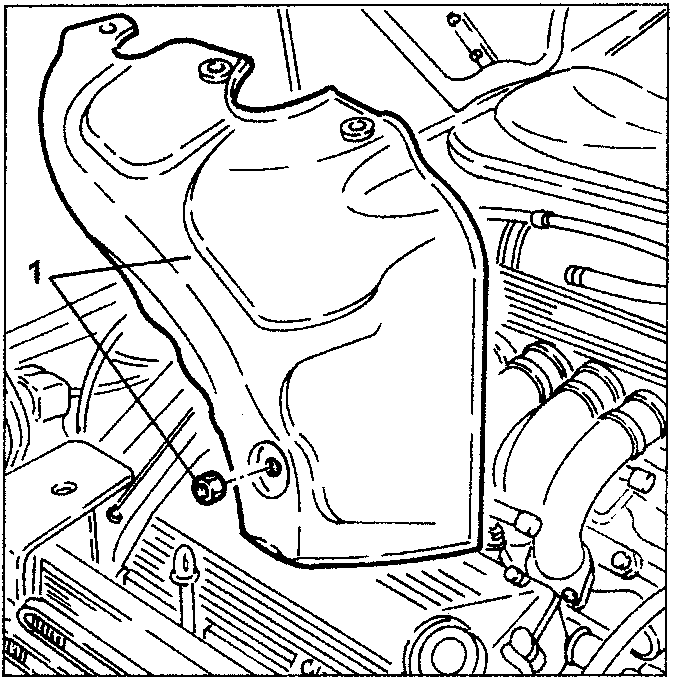

1. Loosen the nuts and remove the firewall from the left-hand exhaust manifold.

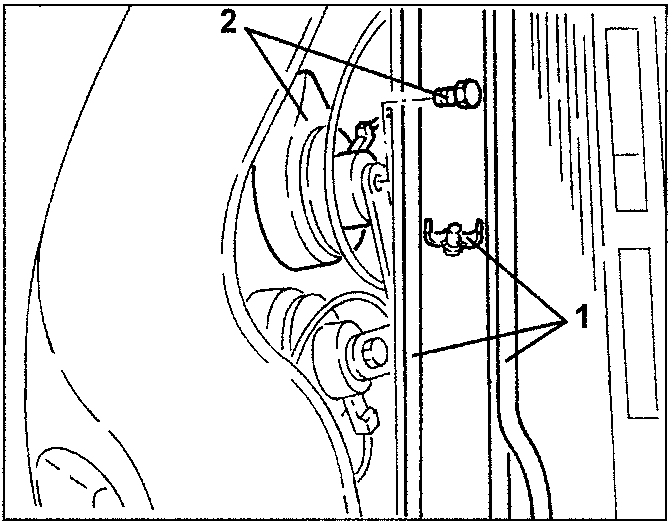

1. Loosen the power steering cooling serpentine from the retainers on the front underbody crossmember.
2. Loosen the fastening screw and move the right-hand horn aside.
