Description (page 3 of 14)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Removal/Refitting

Variants – 3.0 V6 24VDescription · page 3 of 14

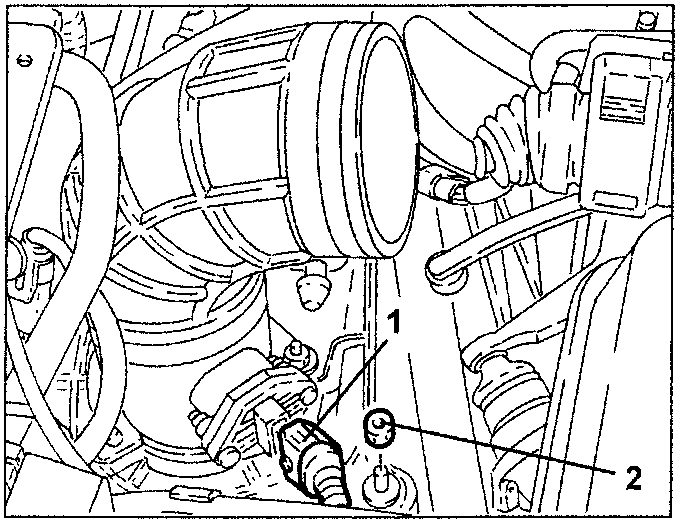

1. Disconnect the hot film air flow meter electrical connection.
2. Loosen the air cleaner fastening nuts.

• Release the air cleaner from the lower resonator sleeve.

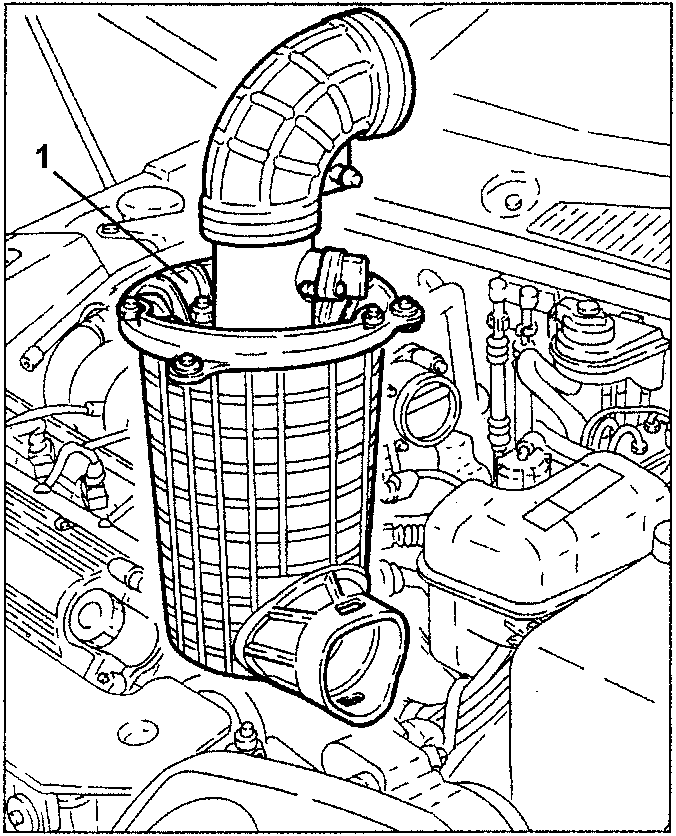

1. Remove the air cleaner and hot film air flow meter.

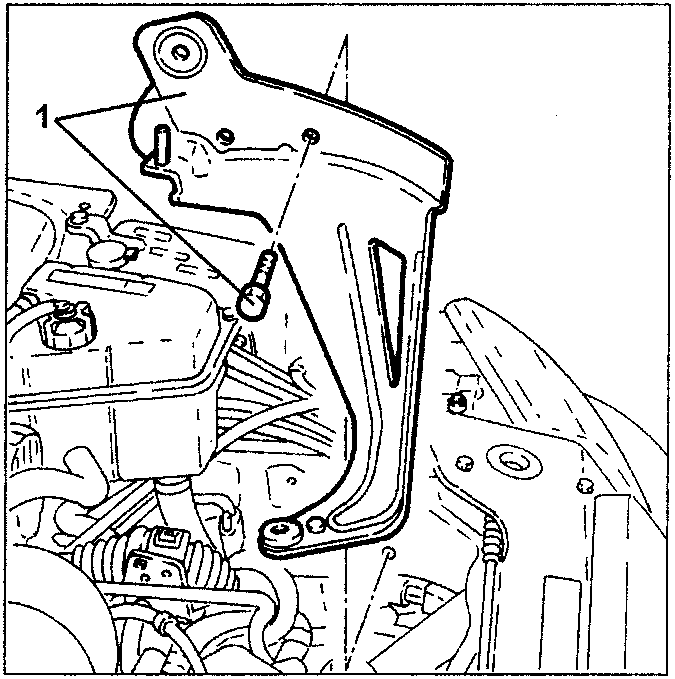

1. Loosen the screws and remove the air cleaner bracket.

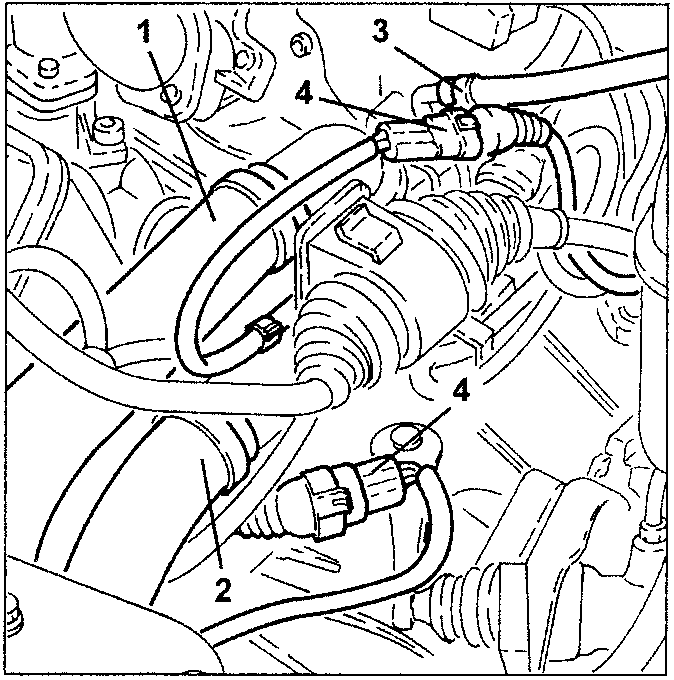

1. Disconnect the radiator coolant delivery sleeve from the thermostat.
2. Disconnect the radiator return coolant sleeve from the thermostat and move it aside.
3. Disconnect the expansion reservoir coolant return pipe from the right-hand cylinder head fitting.
4. Disconnect the lambda sensor electrical connections and release the respective wiring from the fastening clips.
