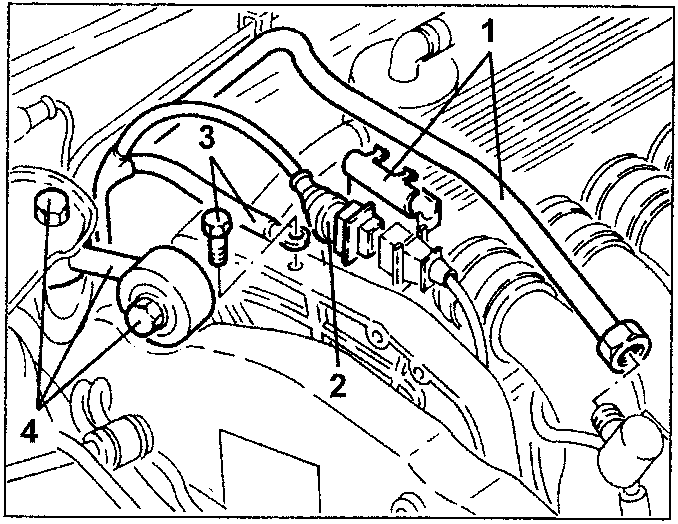

1. Disconnect the fuel delivery pipe from the distribution manifold and release it from the fastening bracket.
2. Disconnect the front knock sensor electrical connection.
3. Disconnect the earth wire from the engine tie-rod.
4. Loosen the screws and remove the engine tie-rod.

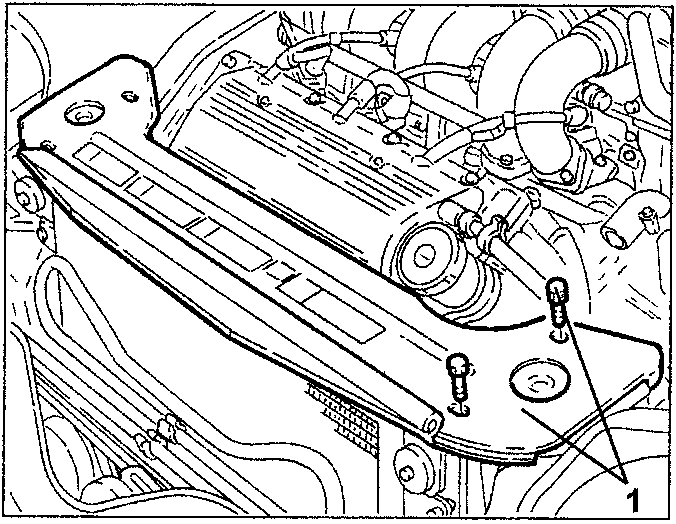

1. Loosen the screws and remove the upper radiator crossmember.

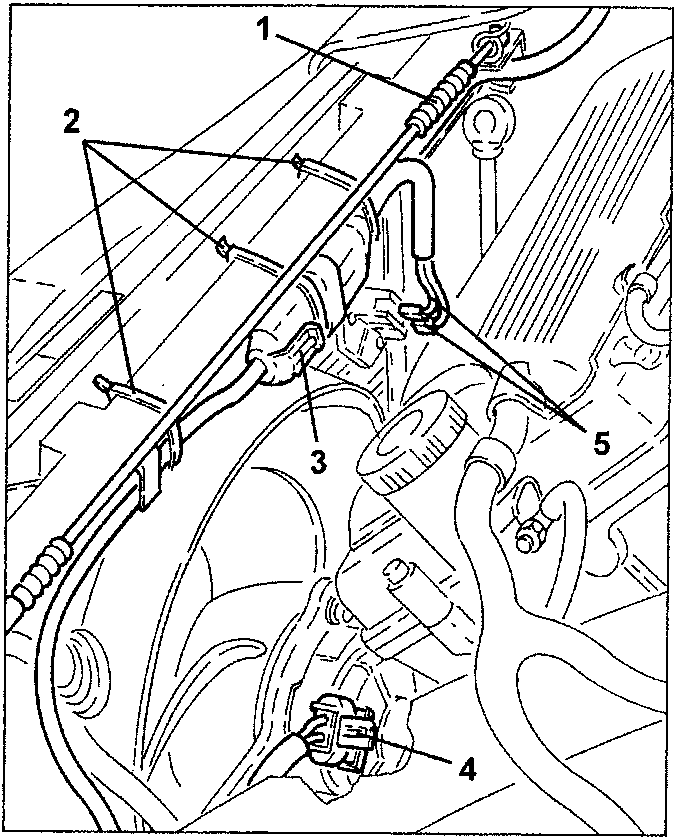

1. Disconnect the bonnet lock wire and move it aside.
2. Release the electrical wiring from the fastening clips and the duct.
3. Disconnect the electrical connection.
4. Disconnect the engine cooling fan electrical connection.

5. Disconnect the engine cooling fan resistor electrical connection and move the electrical wiring aside.

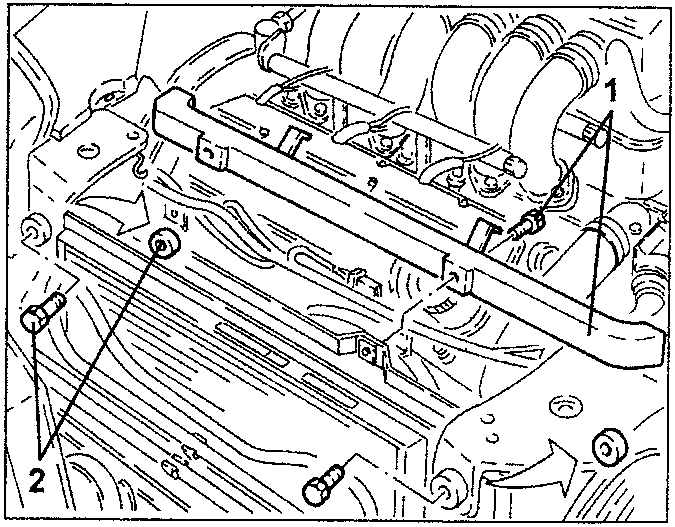

1. Loosen the screws and remove the electrical wiring duct.
2. Loosen the upper radiator fastening screws and take the respective shims.
