Variants – 3.0 V6 24VDescription · page 10 of 14

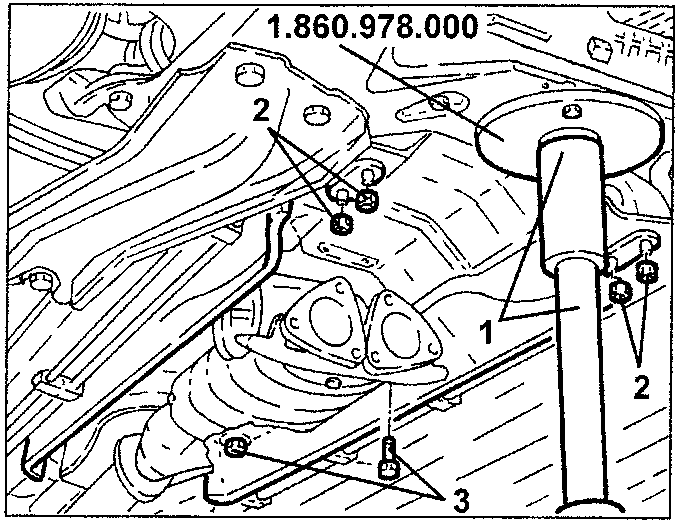

  1. Use a hydraulic jack to support the crossmember by means of tool no. 1.860.978.000.
  2. Loosen the gear lever bracket front fastening nuts.
  3. Loosen the gear lever bracket rear screws and the remaining screws.
Diagram showing hydraulic jack supporting crossmember with tool 1.860.978.000, and gear lever bracket screws labeled 1, 2, 3

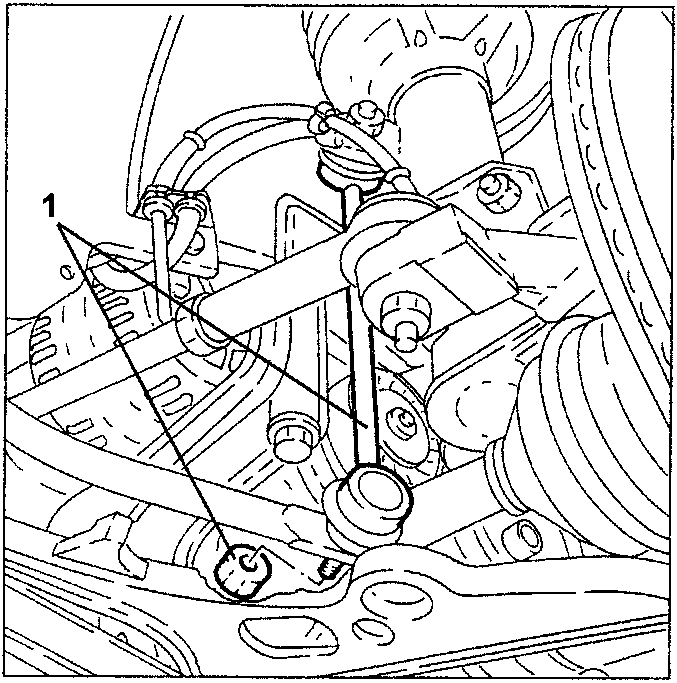

  1. Loosen the nuts and disconnect the stabiliser bar tie-rods.
Diagram showing stabiliser bar tie-rods with nuts labeled 1, 2, 3

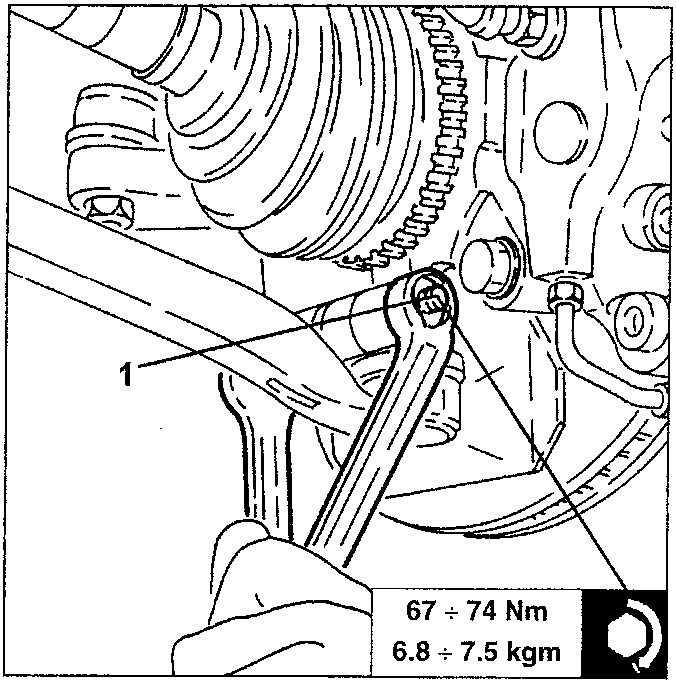

  1. Loosen the bolts fastening the wishbones to the wheel risers.
Diagram showing wishbone bolts being loosened with a wrench, torque specification 67 ÷ 74 Nm and 6.8 ÷ 7.5 kgm shown in a box

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm

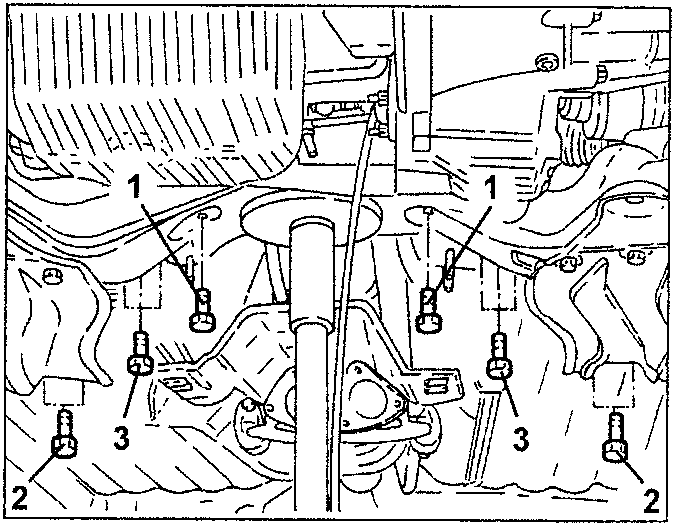

  1. Loosen the screws fastening the power steering unit to the crossmember.
  2. Loosen the rear screws fastening the crossmember reinforcement to the underbody.
  3. Loosen the central screws fastening the crossmember to the underbody.
Diagram showing power steering unit screws, crossmember reinforcement screws, and central crossmember screws labeled 1, 2, 3
