Description (page 9 of 14)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Removal/Refitting

Variants – 3.0 V6 24VDescription · page 9 of 14

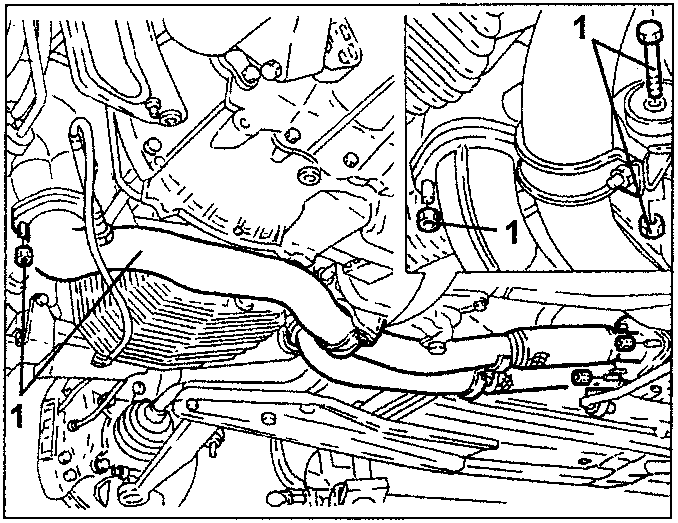

1. Loosen the fasteners and remove the front exhaust pipe section.

1. part name

102 ÷ 126 Nm
10.4 ÷ 12.8 kgm

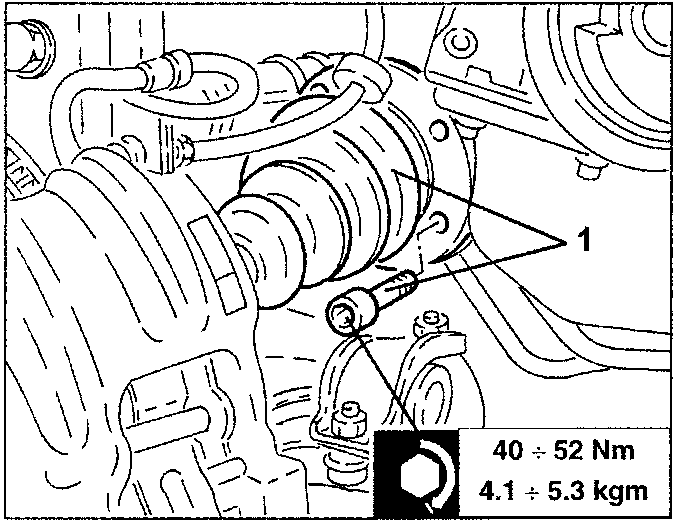

1. Loosen the fastening bolts and disconnect the drive shafts.

40 ÷ 52 Nm
4.1 ÷ 5.3 kgm

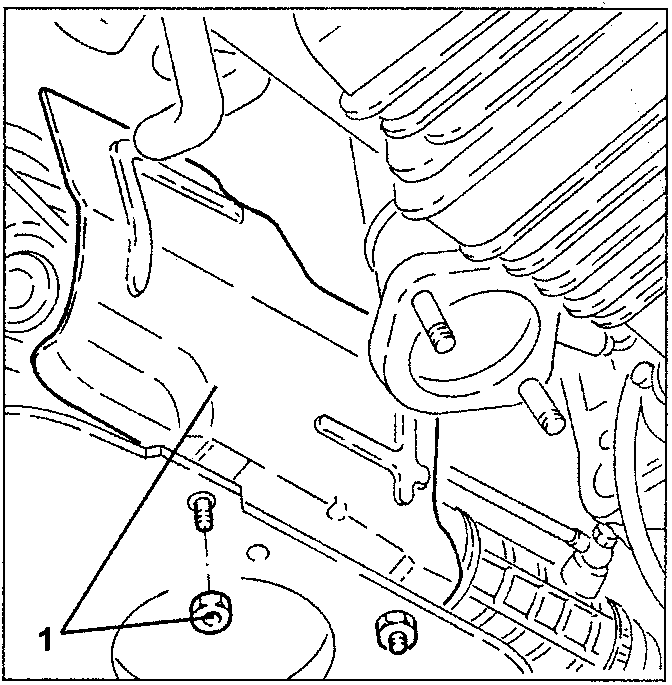

1. Loosen the nuts and remove the power steering unit firewall.

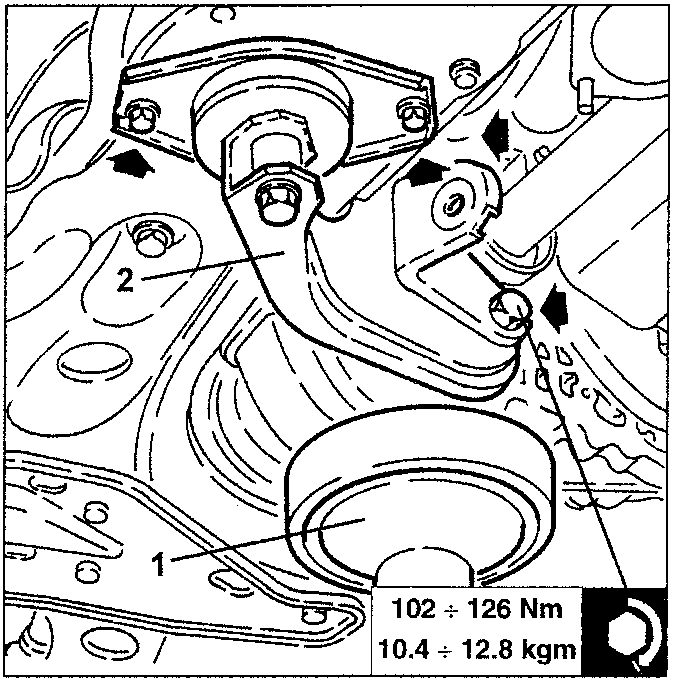

1. Position a hydraulic jack under the differential.
   2. Loosen the fastening screws and remove the rear engine mount.
   - Remove the hydraulic jack from under the differential.
