Variants – 3.0 V6 24VDescription · page 2 of 14

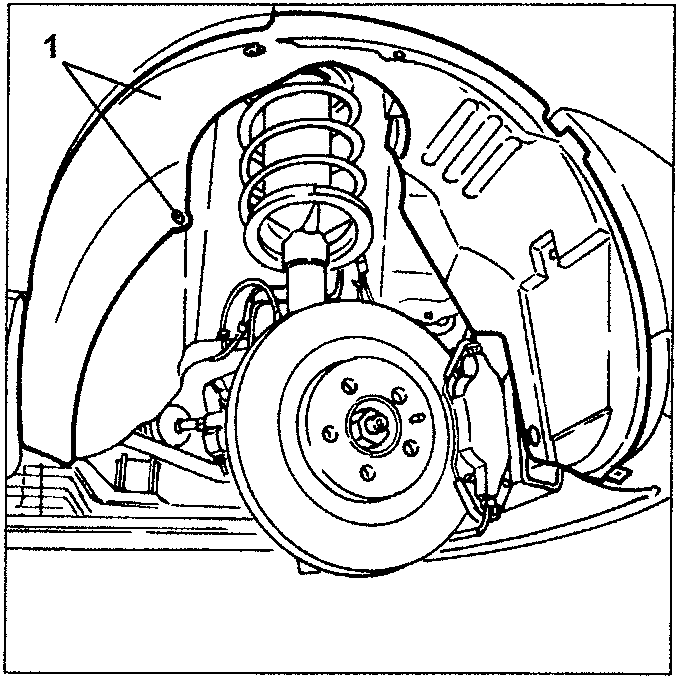

1. Loosen the fasteners and remove the right-hand front wheelhouse.

• Lift the vehicle.

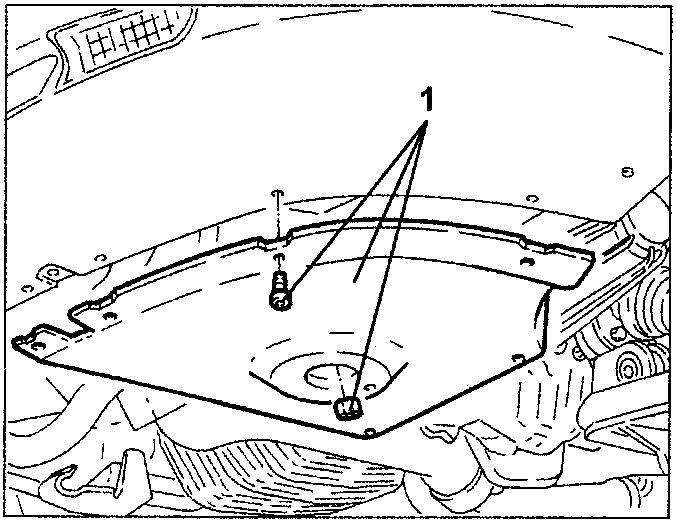

1. Loosen the nut and the screws and remove the lower air cleaner guard.

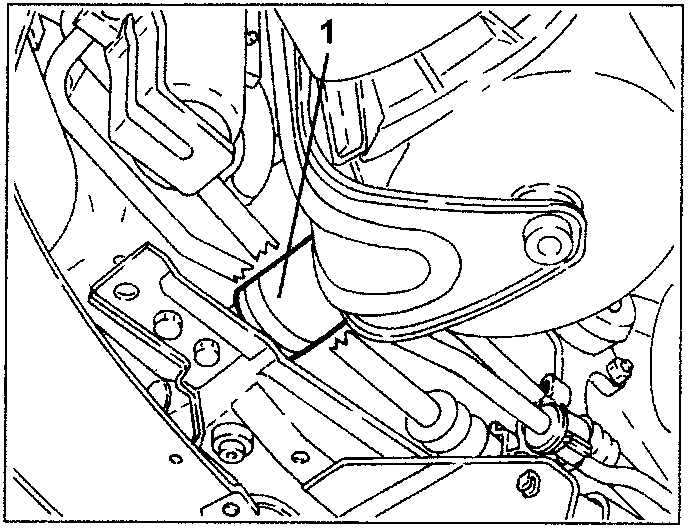

1. Drain the engine coolant by disconnecting the radiator fluid output sleeve and collect the coolant in a suitable container.

• Lower the vehicle.

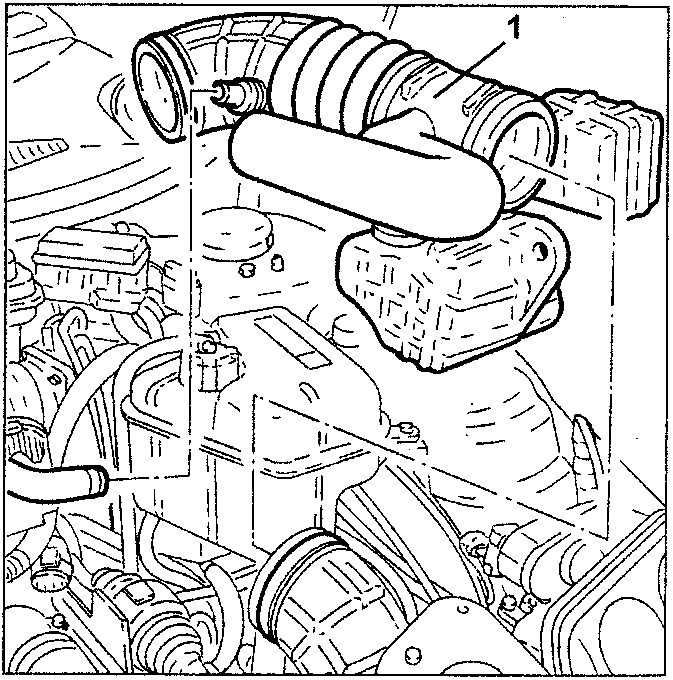

1. Loosen the clips and remove the corrugated sleeve and resonators after releasing the intermediate resonator from the fastening pin.
