Description (page 5 of 14)

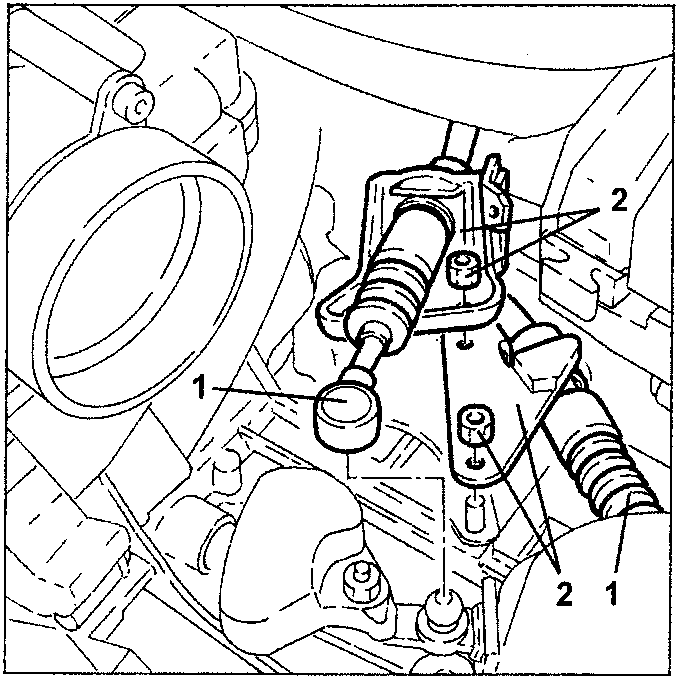

1. Disconnect the gear engagement and selection wires.
2. Loosen the nuts and move the brackets and gear engagement and selection wires aside.

1. Disconnect the starter motor wiring electrical connection.

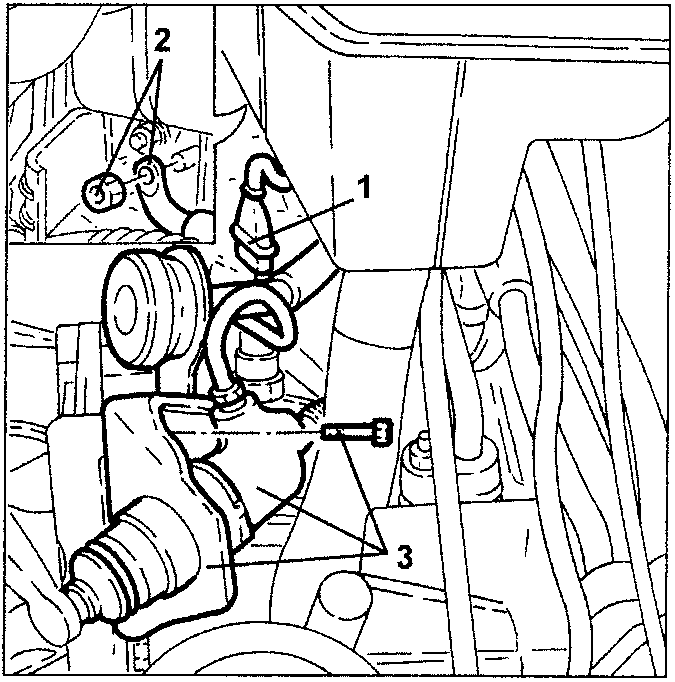

1. Disconnect the reversing light switch electrical connection.
2. Open the junction unit and disconnect the starter motor and alternator power wire.
3. Loosen the fastening screws and move the bracket with clutch cylinder and vibration damper aside without disconnecting the respective pipes.

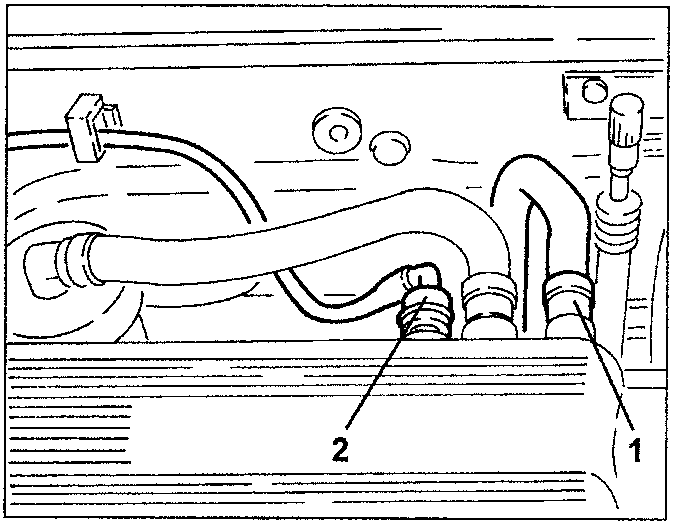

1. Disconnect the brake booster vacuum pipe from the intake manifold.
2. Disconnect the fuel vapour pipe quick coupling from the intake manifold.

• Drain the fuel pressure by removing the specific caps on the distribution manifold and operating the valves underneath.

NOTE: Collect the fuel in a suitable container.
