Description (page 14 of 14)

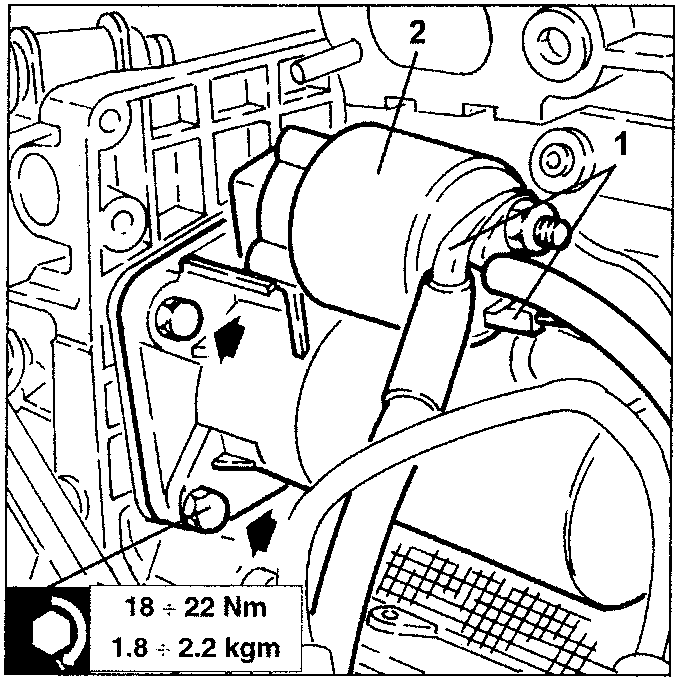

1. Disconnect the starter motor electrical connections.
2. Loosen the three fastening screws and remove the starter motor.

18 ÷ 22 Nm
1.8 ÷ 2.2 kgm

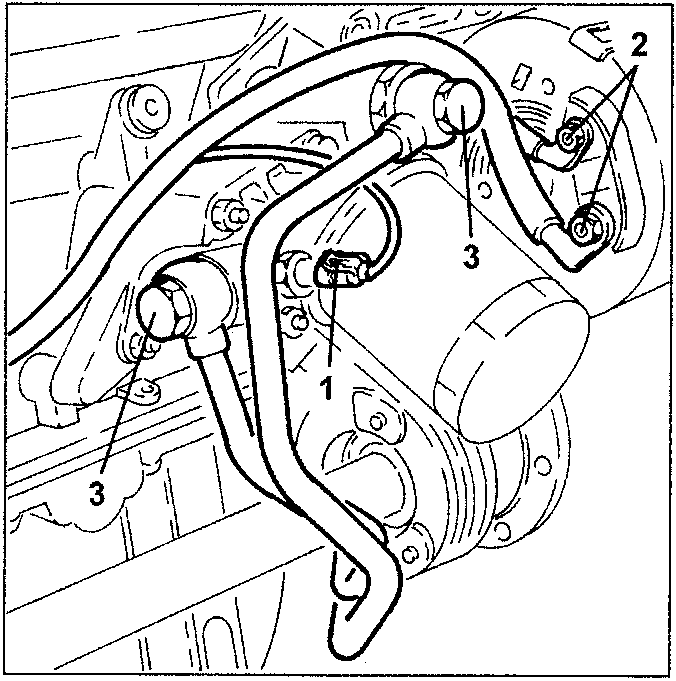

1. Disconnect the engine oil minimum pressure sensor electrical connection.
2. Disconnect the alternator electrical connections. Then remove the electrical wiring by releasing it from the fasteners.
3. Disconnect the radiator engine oil delivery and return pipe fittings from the oil filter bracket. Then remove them with the bracket.

• Drain the gearbox-differential oil.

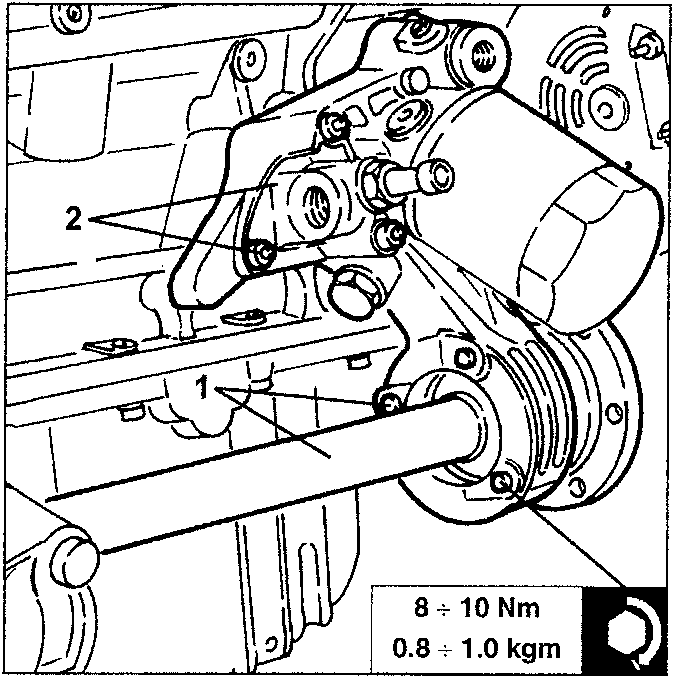

1. Loosen the fastening screws and release the intermediate shaft.

• Remove the dust guard ring.

2. Loosen the fastening nuts and remove the oil filter bracket.

8 ÷ 10 Nm
0.8 ÷ 1.0 kgm

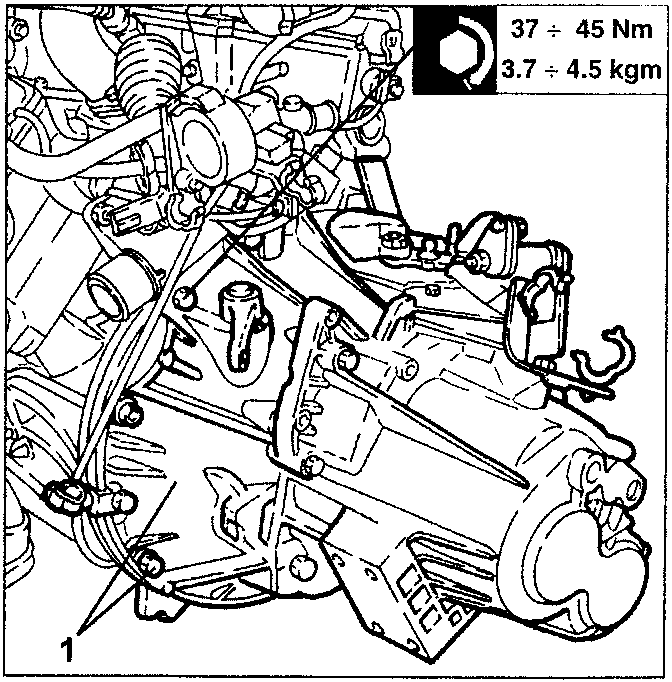

1. Loosen the fastening screws and remove the gearbox-differential with a hydraulic crane.

37 ÷ 45 Nm
3.7 ÷ 4.5 kgm
