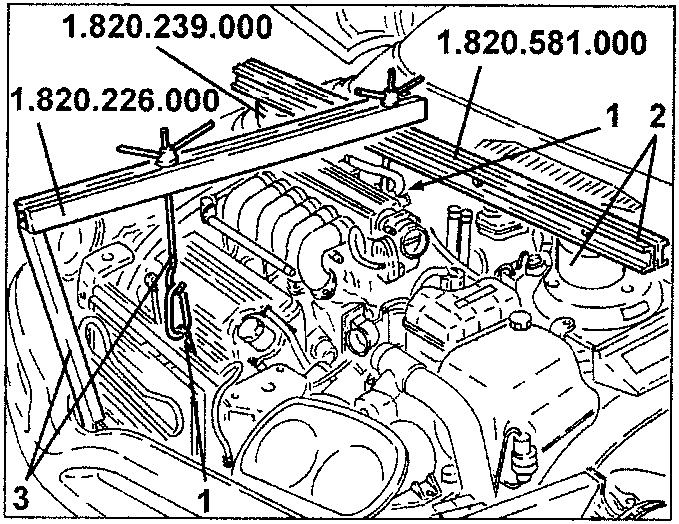

1. Fit the two engine mount rods on the cylinder heads.
2. Fit the crossmember no. 1.820.581.000 with mounts no. 1.820.239.000.
3. Fit mount no. 1.820.226.000 and connect the respective tie-rods on the brackets previously fitted on the cylinder heads.

• Lift the vehicle.

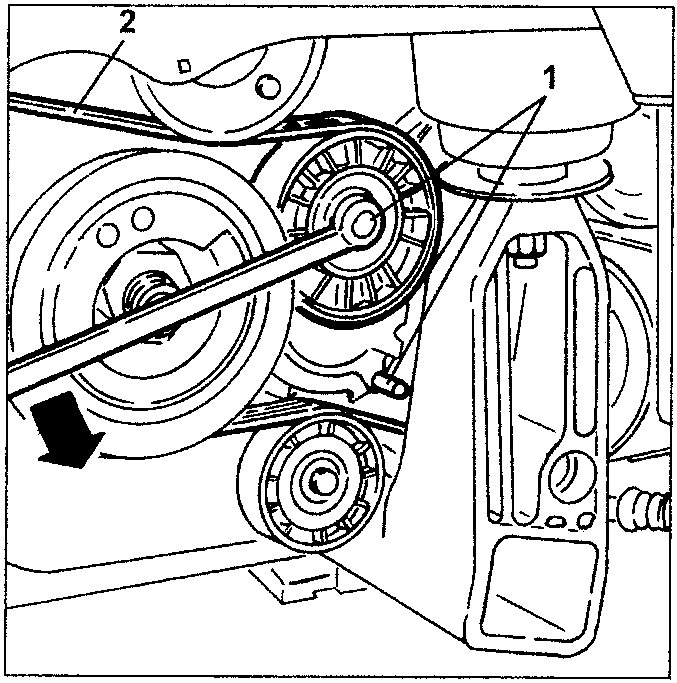

1. With a wrench on the belt take-up pulley fastening screw, overcome the automatic take-up force and lock it in this position (belt loose) with a pin as shown in the figure.
2. Remove the engine unit drive belt.

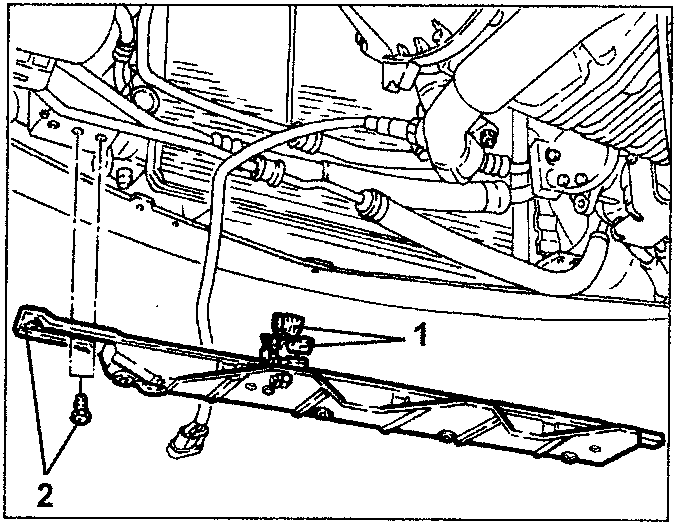

1. Release the power steering and climate control pipes from the clips on the lower radiator crossmember.
2. Loosen the screws and remove the lower engine cooling crossmember.

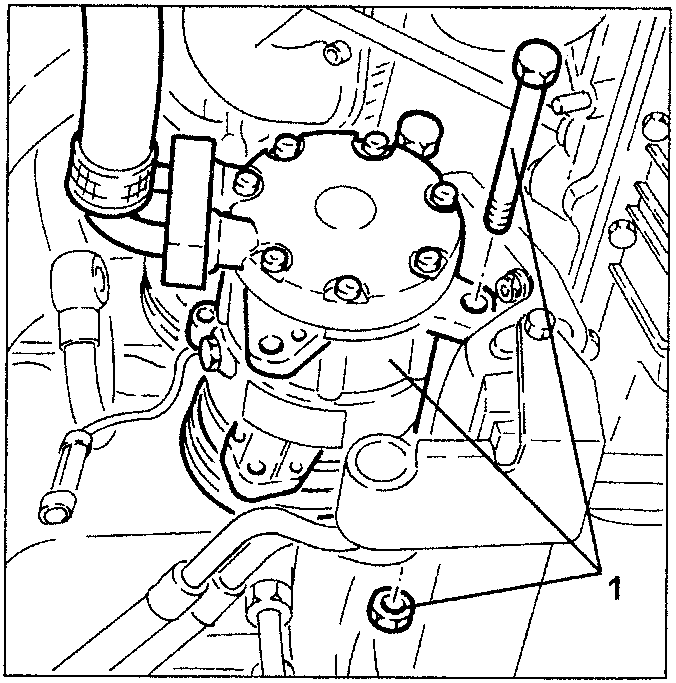

1. Loosen the conditioner compressor fastening screws. Move it aside and fasten it to the underbody.
