Aston Martin DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning (1994-1998)02 · Electrics
02 · General

Procedure (page 2 of 2)

Make
Aston Martin
Model
DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
Year
1994–1998
Section
Seat belt pretensioner system
ElectricsProcedure · page 2 of 2

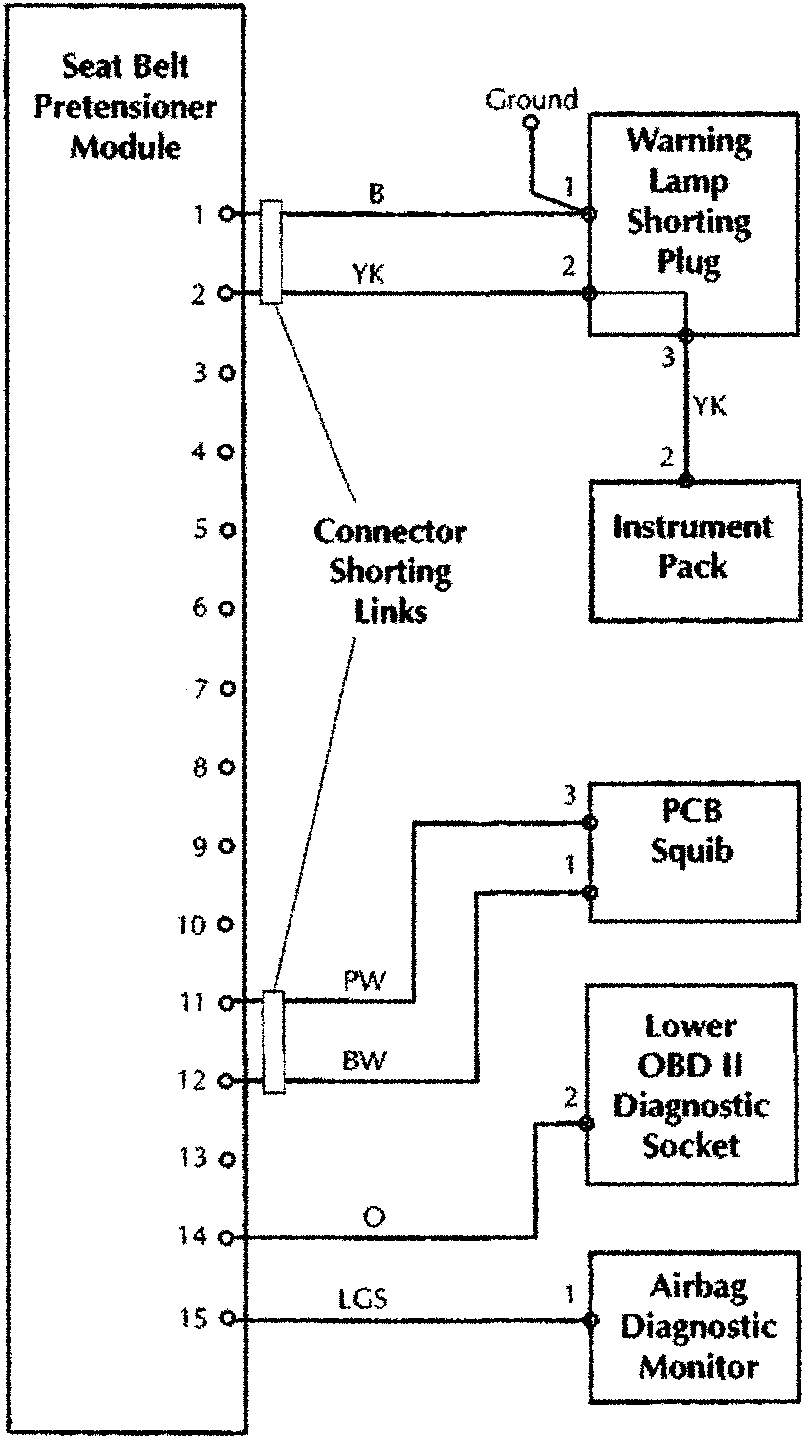

Seat Belt Pretensioner Module wiring diagram with connectors and components
