00 IntroductionEngine Number

Engine Number

The engine number is stamped on the LH side of the engine block.

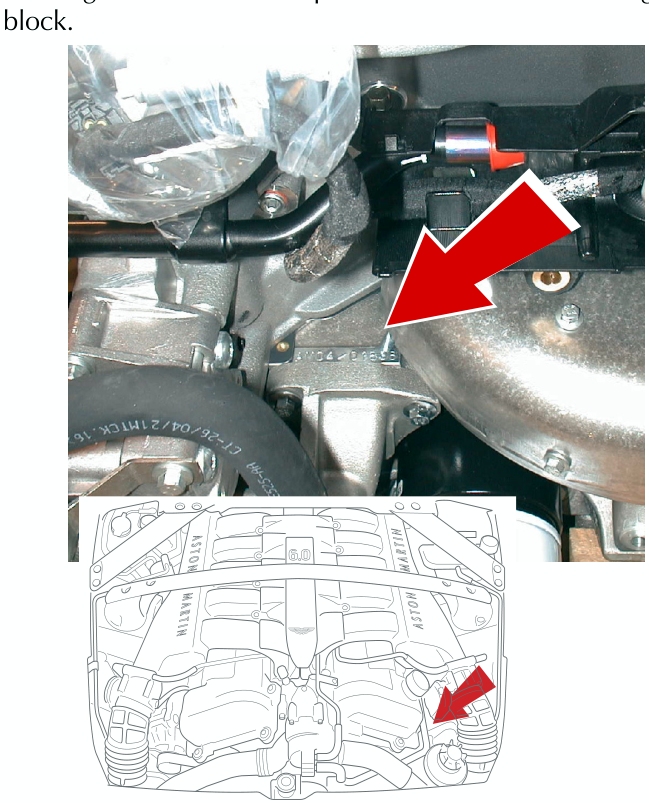

Photograph and line drawing showing the location of the engine number on the LH side of the engine block, indicated by a red arrow.

Gearbox Number

Automatic Gearbox

The automatic gearbox number plate is located on the LH side of the gearbox.

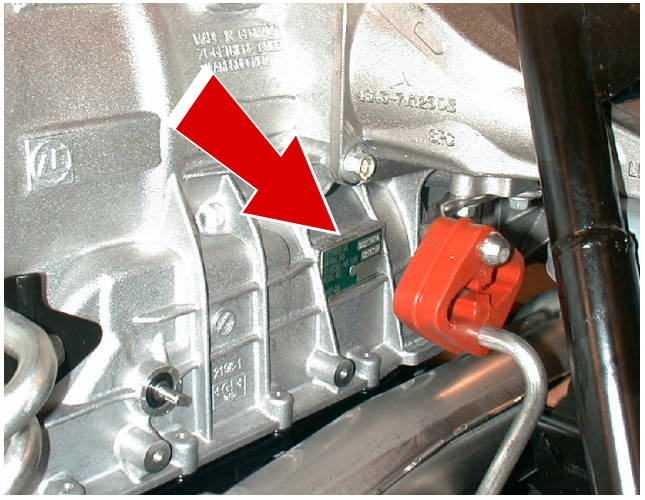

Photograph showing the automatic gearbox number plate on the LH side of the gearbox, indicated by a red arrow.

Manual Gearbox

To follow.

Image to Follow
