00 IntroductionVehicle Identification Number (VIN)
Vehicle Identification Number (VIN)
The Vehicle Identification Number (VIN) is a 17 character number which uniquely identifies the vehicle and gives fundamental data on the build site, date and initial configuration of the vehicle.
| F1 | S | C | F | A | C | 1 | 3 | A | 4 | 1 | G | A | 0 | 0 | 0 | 0 | 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code for AML | |||||||||||||||||
| Restraint System | |||||||||||||||||
| Transmission and Steering | |||||||||||||||||
| Body Type | |||||||||||||||||
| Engine Type | |||||||||||||||||
| Calculated Check Digit | |||||||||||||||||
| Model Year | |||||||||||||||||
| Manufacturing Plant | |||||||||||||||||
| Series Identifier | |||||||||||||||||
| Sequential Chassis Number | |||||||||||||||||
VIN Number Location
The VIN number is stamped / plated in the following locations:

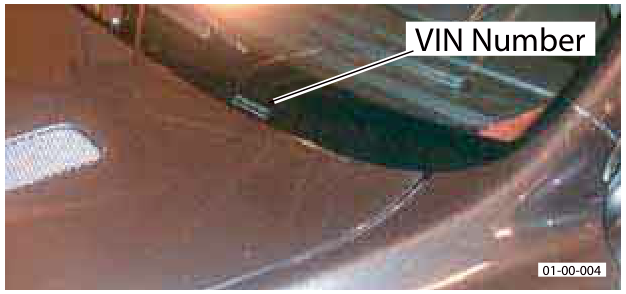

Under the lower edge of the windscreen.

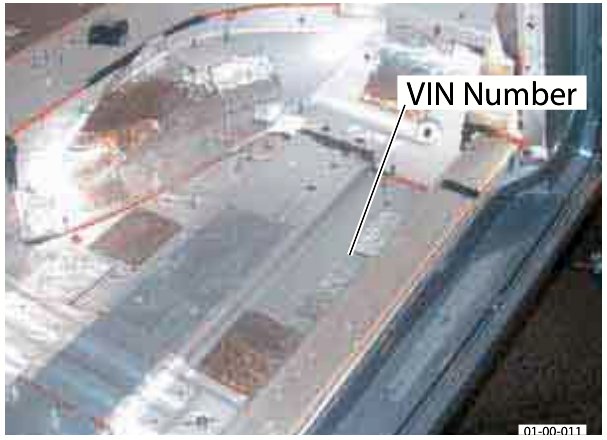

Stamped on the floorpan in the RH front footwell.

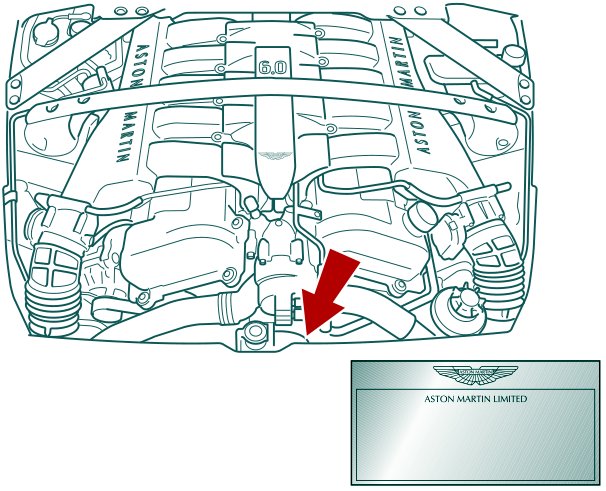

Front of the engine bay.
