01 Body systemInstallation (Volante)

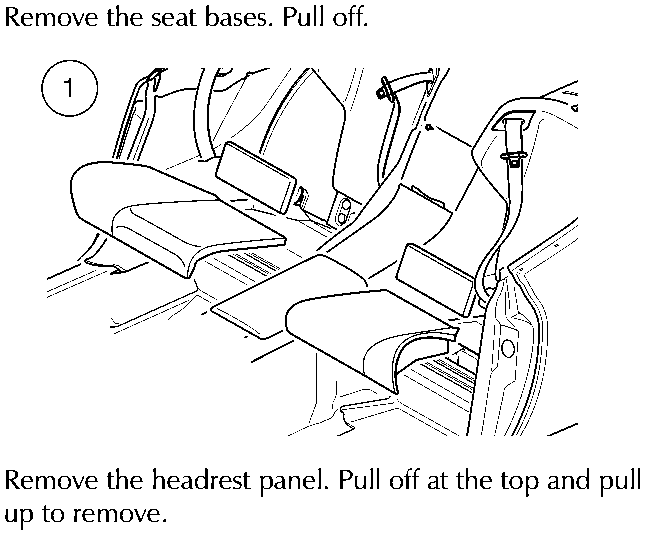

  1. Remove the seat bases. Pull off.
Diagram showing the rear seat base being pulled off, with callout number 1
  1. Remove the headrest panel. Pull off at the top and pull up to remove.
  2. Remove screws (x4) that secure the seat back. Withdraw the seat back.
Diagram showing the rear seat back with four callout lines pointing to the securing screws on the headrest panels

Installation (Volante)

Install the rear seat in reverse order.

Torque seat belt mounts to 35 Nm.
