Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)04 · 03 Engine
04 · Engine

Maintenance

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Air Charging › Maintenance
03 EngineMaintenance

Maintenance

Air Filter

Repair Operation Time (ROT)
ItemCode
Air Filter RenewLH 03.12.CB
RH 03.12.DB

Removal

If using a two post vehicle lift, remove the screws that secure the rear section of the road wheel arch liner. Hold back the rear section of the road wheel arch liner to allow the foot of the vehicle lift to be positioned correctly. (Refer to 'Jacking Points', page I-I-IX)

  1. Raise the vehicle and make safe.
  2. Remove the road wheel(s).
  3. Remove the front undertray.
  4. Remove the screws (x3). Pull the front section of the wheel arch down to gain access the air filter box.

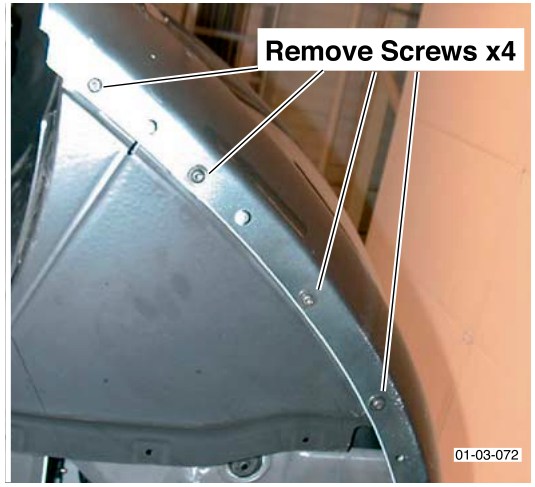

View of the inner wheel arch liner with four screws indicated for removal
  1. Remove bolts (x7) and remove filter box cover.

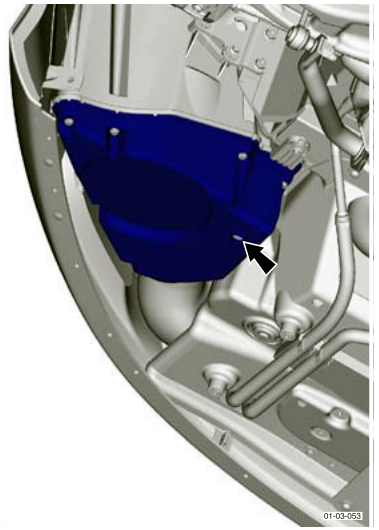

Blue highlighted air filter box located in the wheel arch
Air filter removed from the housing
  1. Repeat for second air filter.

Installation

  1. Push the air filter onto the filter adaptor. Install the box cover. Torque bolts to 1.5-2.0 Nm.

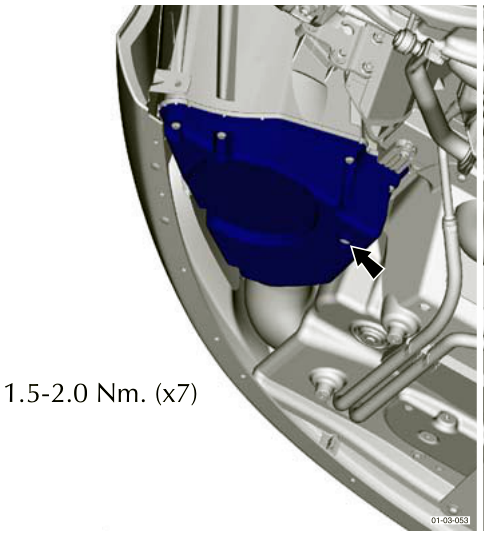

Blue highlighted air filter box installed with torque specification 1.5-2.0 Nm (x7)
  1. Install the front section of the road wheel arch liner.
  2. Install the front undertray.
  3. Install the road wheel(s) (Refer to 'Road Wheel Nut Torque Tightening', page 4-5-7).
