03 EngineMaintenance

Maintenance

Spark Plugs

Repair Operation Time (ROT)
ItemCode
Spark Plug RenewAll 03.07.DB
LH Bank 03.07.EB
RH Bank 03.07.FB

Removal

  1. Remove the inlet manifold (Refer to 'Inlet Manifold', page 3-2-7).
  2. Remove the spark plug cover.

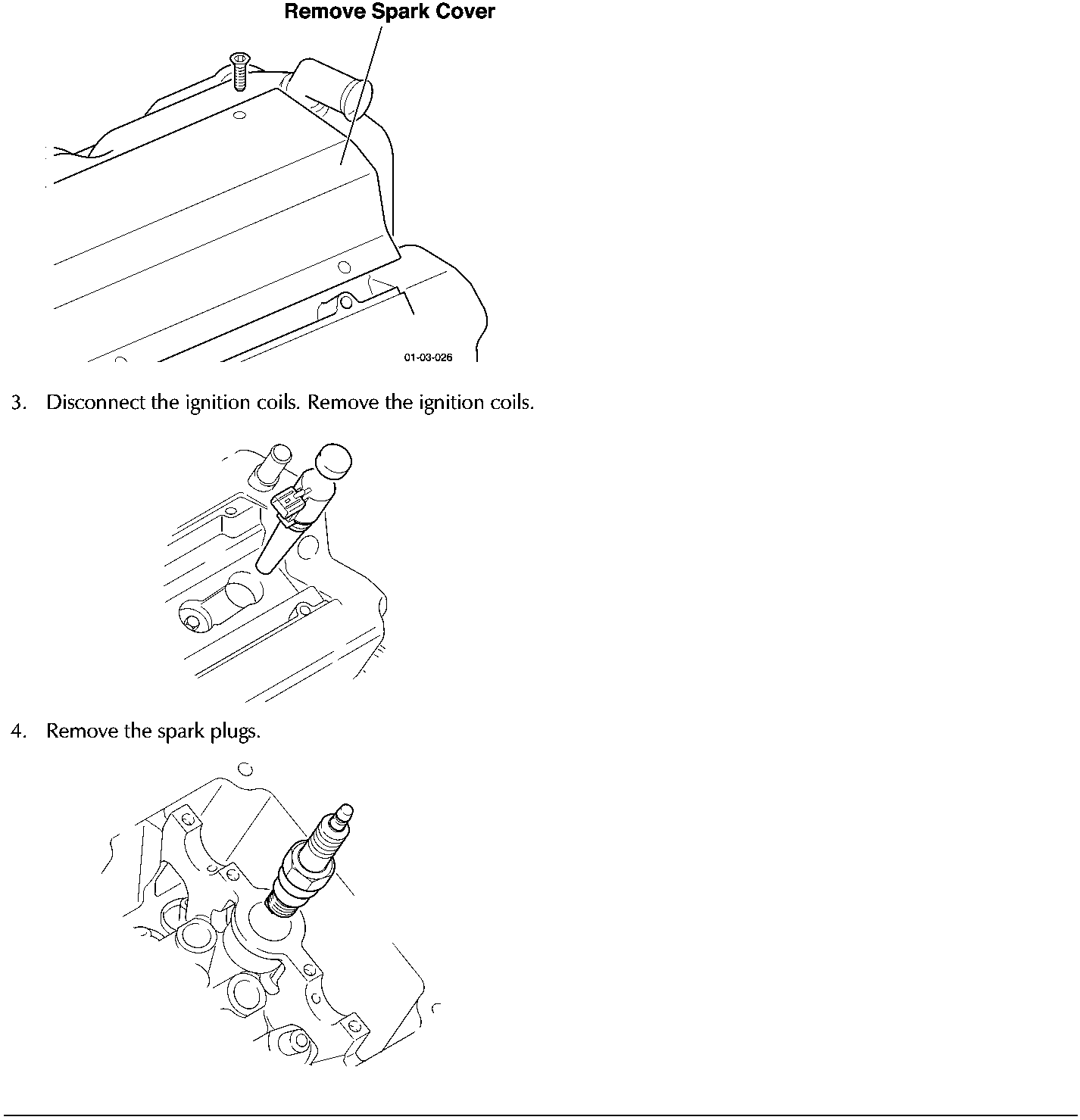

Line drawing of the top of an engine valve cover with a callout pointing to the spark plug cover labeled Remove Spark Cover.
  1. Disconnect the ignition coils. Remove the ignition coils.
  1. Remove the spark plugs.

Installation

  1. Install the spark plugs. Torque to 16-20 Nm.
  2. Install the ignition coils. Torque bolts to 5-7 Nm. Connect the ignition coils wiring harness plugs.
  3. Install the spark plug cover. Torque bolts to 2.5-3.5 Nm.
  4. Install the inlet manifold (Refer to 'Inlet Manifold', page 3-2-7).
