Installation (page 2 of 2)

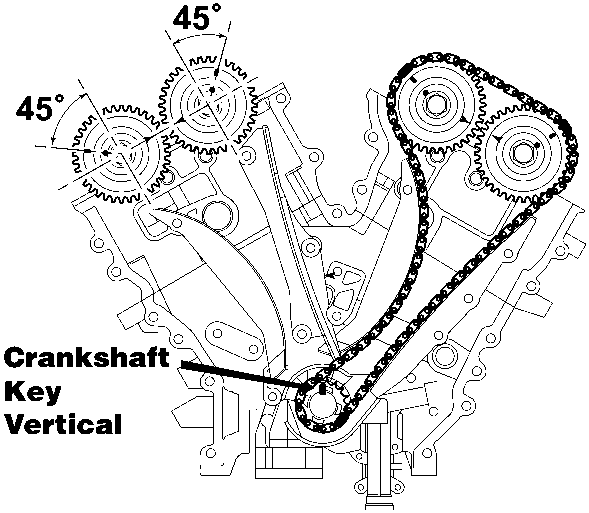

7. Ensure the crankshaft key is in the vertical position (No.1 cylinder at 30° ATDC). Ensure that the camshafts are in the initial positions shown.

8. Engage the camshaft timing service tool (Refer to '303-713 (Camshaft Set)', page 20-1-5) to flats on the camshafts.
9. Install the fixed timing chain guide.

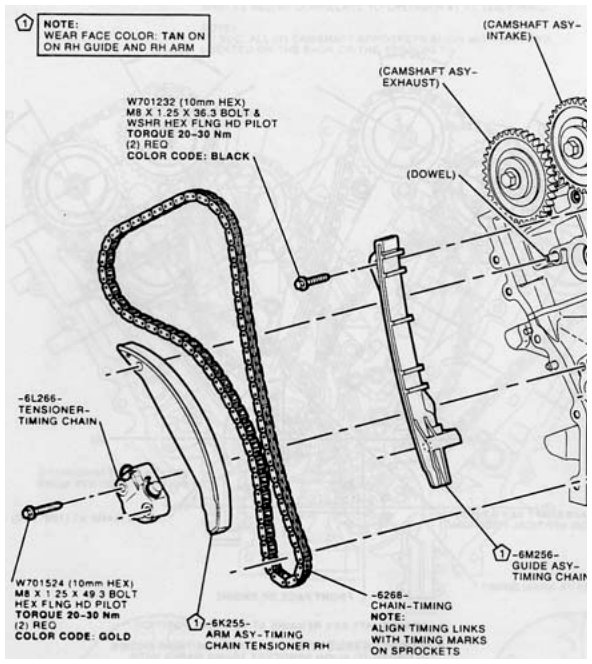

NOTE: WEAR FACE COLOR: TAN ON RH GUIDE AND RH ARM

(CAMSHAFT ASY-INTAKE)

(CAMSHAFT ASY-EXHAUST)

(DOWEL)

-6L266-TENSIONER-TIMING CHAIN

W701232 (10mm HEX)
M8 X 1.25 X 36.3 BOLT &
WSHR HEX FLNG HD PILOT
TORQUE 20-30 Nm
(2) RED
COLOR CODE: BLACK

W701524 (10mm HEX)
M8 X 1.25 X 49.3 BOLT
HEX FLNG HD PILOT
TORQUE 20-30 Nm
(2) RED
COLOR CODE: GOLD

-6K255-ARM ASY.-TIMING CHAIN TENSIONER RH

-E266-CHAIN-TIMING NOTE:
ALIGN TIMING LINKS WITH TIMING MARKS ON SPROCKETS

-6M256-GUIDE ASY-TIMING CHAIN

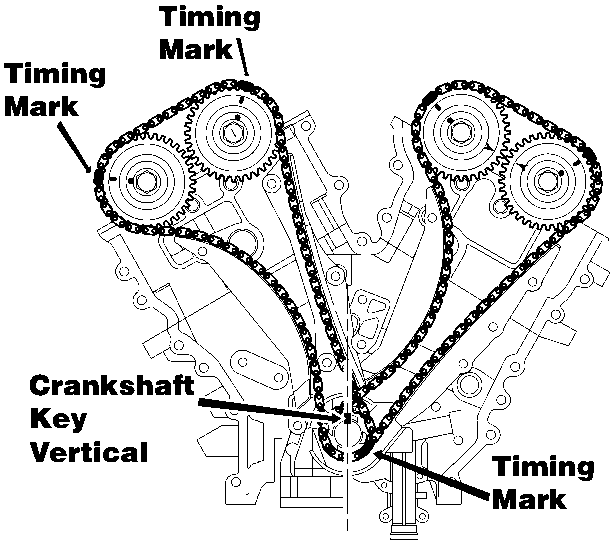

10. Install the timing chain with the marked links (x3) matching timing marks on the camshaft and crankshaft sprockets.

11. Install the timing chain tensioner arm.
12. Install the timing chain tensioner. Remove it's lock pin.
13. Ensure all three marked links on the timing chain align with the timing marks on the camshaft and crankshaft sprockets.
14. Remove the camshaft timing service tool.
15. Install the crankshaft timing disc, noting orientation from removal.

Image to Follow

16. Check the valve timing (Refer to 'Valve Timing Check', page 3-10-4).
17. Install the timing cover (Refer to 'Timing Cover', page 3-11-3).
18. Install the engine to the vehicle (Refer to 'Engine', page 3-1-4).
