Installation (page 2 of 2)

9. Torque down the camshafts.

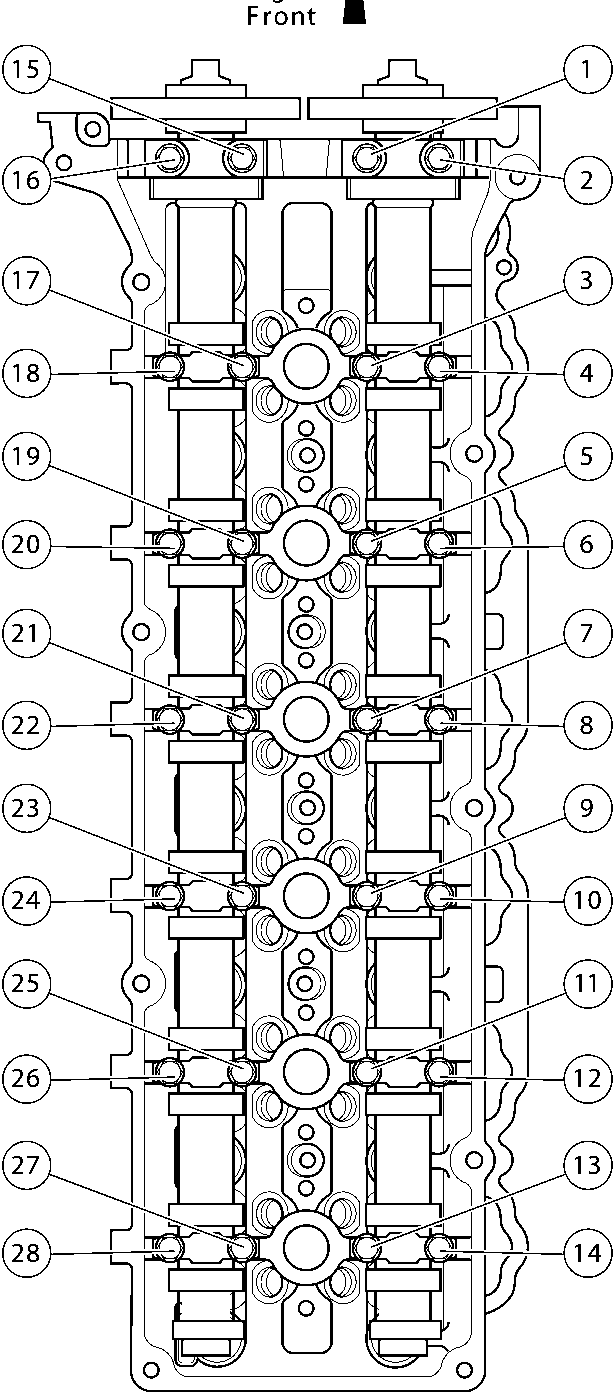

9.1 Progressively ‘nip’ down all bolts in the sequence shown. Ensure the camshaft bearing caps pull down evenly into contact with the cylinder head.

9.2 In the sequence shown, torque the camshaft bearing caps to 8-12 Nm.

10. Repeat from step 6. for the second cylinder head.
11. Install the timing chains. Perform the camshaft timing procedure (Refer to ‘Valve Train (03.09)’, page 3-10-1).
12. Install the timing cover (Refer to ‘Timing Cover’, page 3-11-3).
13. Install the accessory drive belt (Refer to ‘Drive Belt’, page 3-6-1)
14. Install the camshaft cover (Refer to ‘Camshaft Cover’, page 3-11-1).
15. Install the thermostat housing (Refer to ‘Thermostat’, page 3-4-5).
16. Fill the engine coolant system (Refer to ‘Coolant Drain / Fill’, page 3-4-3).
17. Install the inlet manifold (Refer to ‘Inlet Manifold’, page 3-2-7).
18. Install the engine to vehicle (Refer to ‘Engine’, page 3-1-4).
