Vertical link
- Make
- Aston Martin
- Model
- DB9 Factory Workshop Manual
- Year
- Issue 2, 2005
- Section
- Rear Suspension › Vertical link
04 SuspensionVertical link

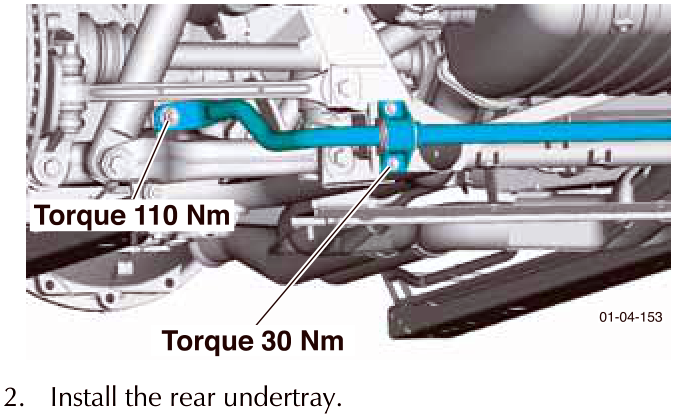

• Anti-roll bar link nuts to 110 Nm.
Ensure that the washer installs between the stud and the suspension arm.
- Install the rear undertray.
Vertical link
| Repair Operation Time (ROT) | |
|---|---|
| Item | Code |
| Vertical link Renew | (LH) 04.02.GB (RH) 04.02.HB |
Removal
- Raise the vehicle and make safe.
- For each affected wheel station remove the road wheel(s).

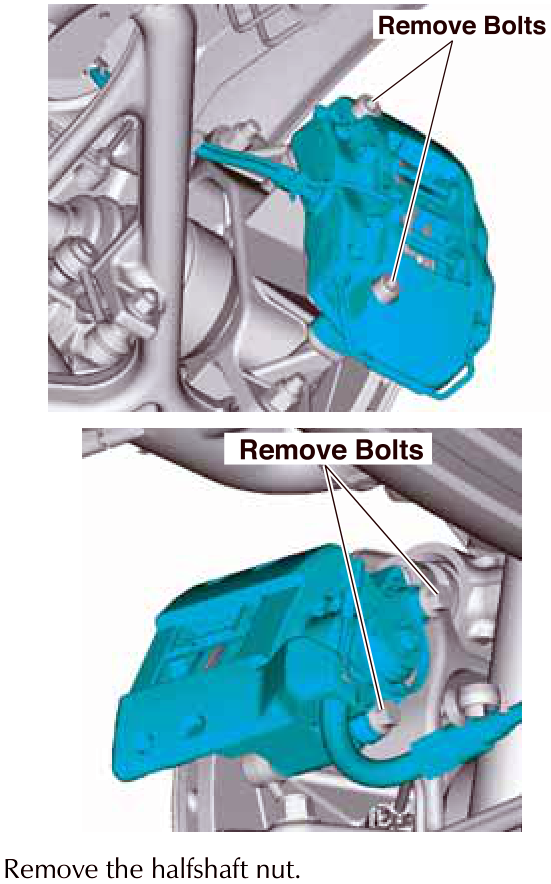

- Remove the service brake and handbrake calipers. Move the calipers to one side and secure.

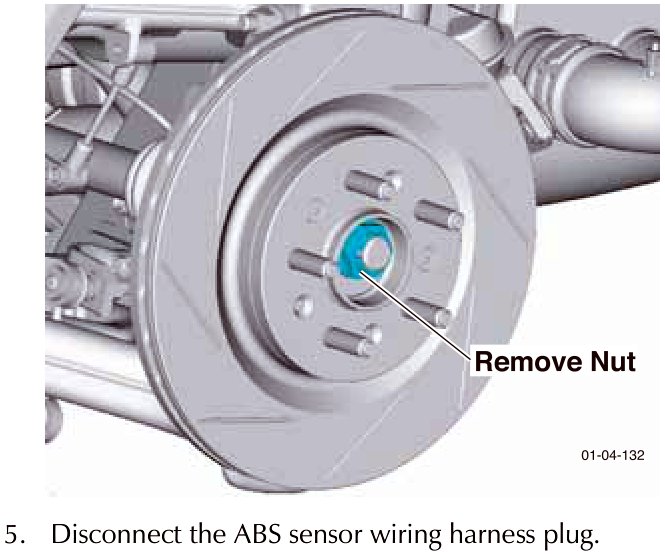

- Remove the halfshaft nut.

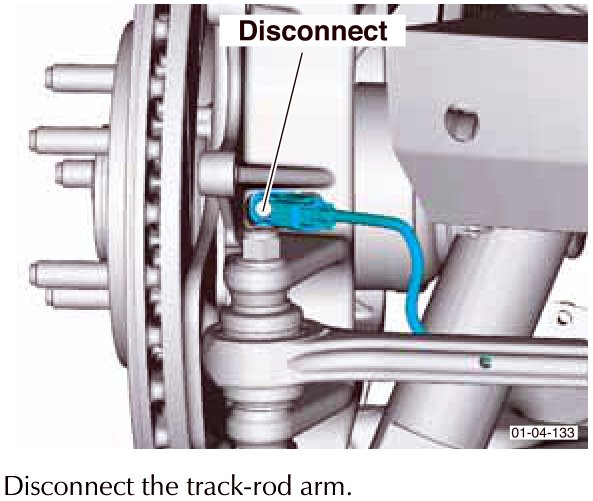

- Disconnect the ABS sensor wiring harness plug.

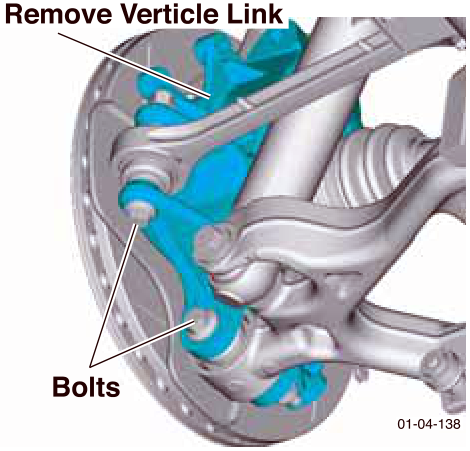

- Disconnect the track-rod arm.
Parts & tools for this job For 2005 Aston Martin DB9
- TOOLCoil spring compressorSearch: coil spring compressor
- TOOLBall joint separatorSearch: ball joint separator
- PARTRear shock absorbersSearch: Aston Martin DB9 2005 rear shock absorbers
