Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)05 · 04 Suspension
05 · Steering & suspension

Maintenance (Rear) (page 2 of 2)

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Shock Absorber System
04 SuspensionMaintenance (Rear) · page 2 of 2
  1. Install the spring and damper assembly to the lower suspension arm. Torque bolt to 175 Nm.

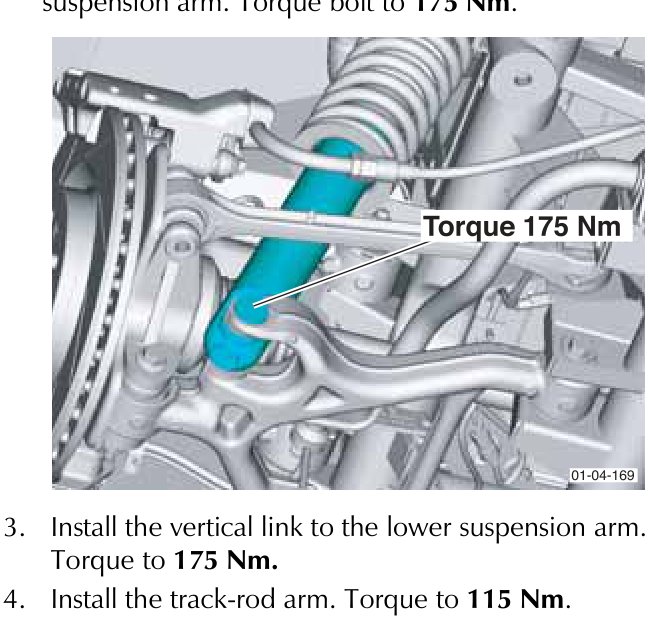

Diagram showing the spring and damper assembly with a callout indicating Torque 175 Nm
  1. Install the vertical link to the lower suspension arm. Torque to 175 Nm.
  2. Install the track-rod arm. Torque to 115 Nm.

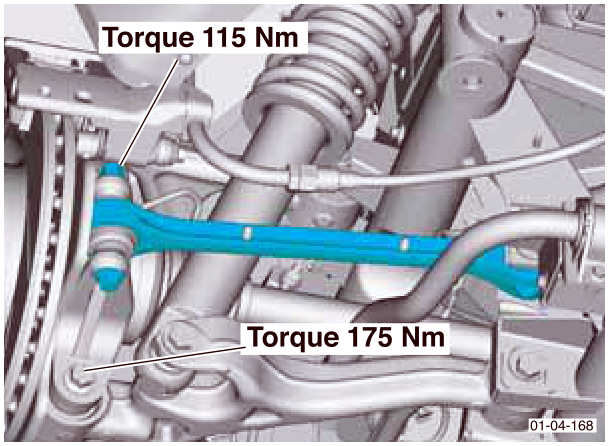

Diagram showing the track-rod arm and vertical link connections with callouts indicating Torque 115 Nm and Torque 175 Nm
  1. Install the road wheels (Refer to 'Road Wheel Nut Torque Tightening', page 4-5-7).
  2. Check / adjust the Camber and Toe settings.
