9. Automatic Gearbox Only.

⚠ Warning ⚠
The torque tube is heavy. To avoid personal injury or damage to the torque tube, torque tube removal is at least a two person operation.

1. Feed the torque tube into position against the engine block.
2. Secure the torque tube to the engine block.
   • M8 25 Nm.
   • M10 50 Nm.

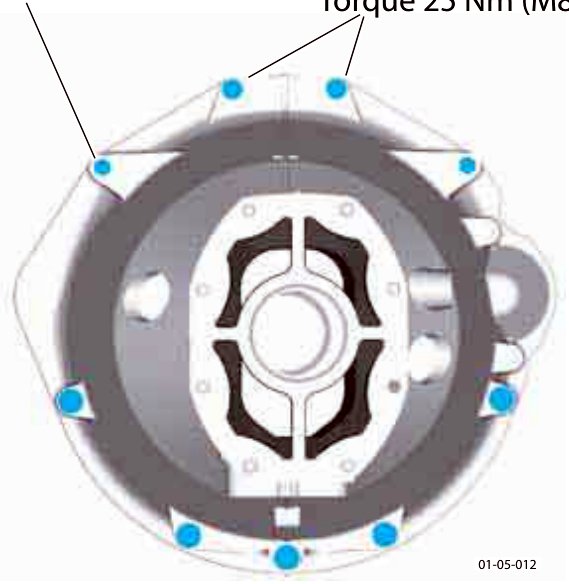

Torque 50 Nm (M10x7) Torque 25 Nm (M8x2)

3. Lower the engine onto its mounts. Torque the two engine mount nuts to 47 Nm.

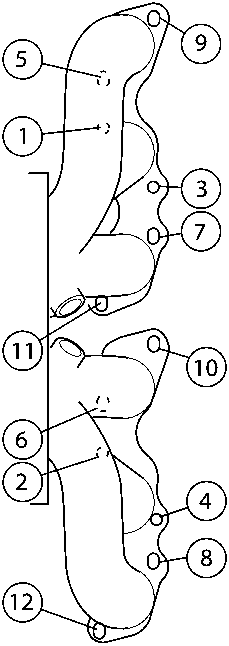

4. Install the exhaust manifold. Torque the nuts, in sequence shown, to 18-22 Nm.

5. Install the exhaust heat shields.
6. Install the lower steering column (LH drive only) and the dip stick tube.
7. Install the earth cable.
8. Install the starter motor. Torque bolts to 50 Nm.

9. Automatic Gearbox Only.

Install the propshaft to the torque tube. Install the wire clip.

When installing the propshaft use a lever through the opening in the bell housing to manoeuvre the splines of the propshaft to the crankshaft.
Use a soft face hammer to fully locate the propshaft
