10. Automatic Gearbox Only.

10. Automatic Gearbox Only.

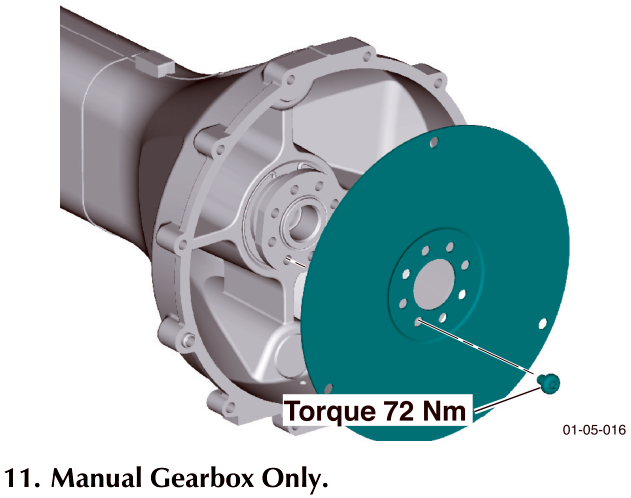

Install the drive plate. Torque bolts to 72 Nm.

11. Manual Gearbox Only.

Install the propshaft to the torque tube. Install the horseshoe clip.

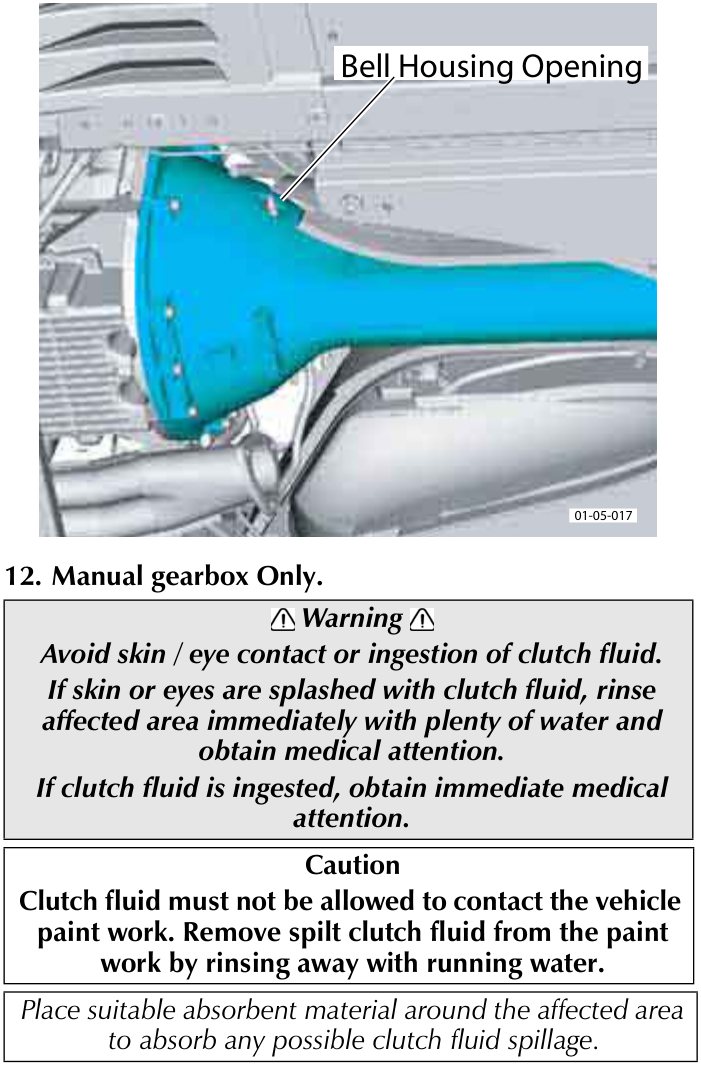

When installing the propshaft use a lever through the opening in the bell housing to manoeuvre the splines of the propshaft to the crankshaft.
Use a soft face hammer to fully locate the propshaft.

12. Manual gearbox Only.

⚠ Warning
Avoid skin / eye contact or ingestion of clutch fluid. If skin or eyes are splashed with clutch fluid, rinse affected area immediately with plenty of water and obtain medical attention.
If clutch fluid is ingested, obtain immediate medical attention.

Caution
Clutch fluid must not be allowed to contact the vehicle paint work. Remove spilt clutch fluid from the paint work by rinsing away with running water.

Place suitable absorbent material around the affected area to absorb any possible clutch fluid spillage.

Install the clutch salve cylinder bleed and supply pipes.

Push the wire clip back into position on the female end, then connect the male to the female.

13. Automatic Gearbox Only.

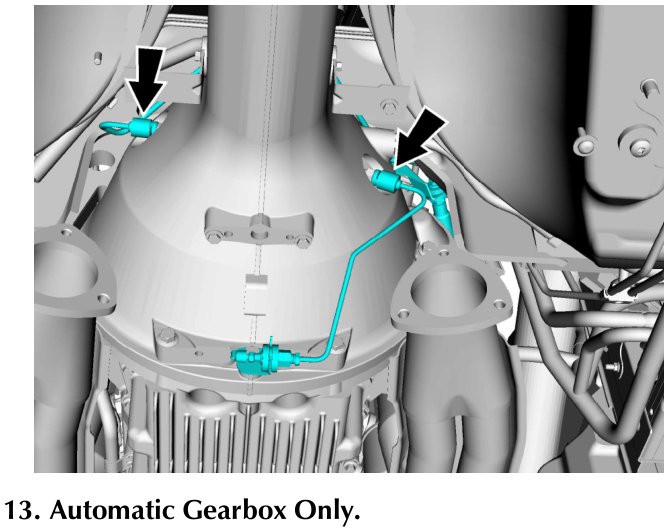

Install the transmission oil coolant pipes to the torque tube.

14. Install the heat shield brackets to the torque tube.
15. Automatic Gearbox Only.
    Install the rear subframe complete with the transaxle (Refer to 'Rear Subframe', page 2-1-4).
16. Manual gearbox Only.
    Install the transaxle (Refer to 'Manual Transmission (07.03)', page 7-3-1).
17. Manual gearbox Only.
    Bleed the clutch.
18. Install the heat shields.
19. Install the exhaust system (Refer to 'Exhaust System', page 9-2-1).
20. Install the shear panel and both undertrays.
21. Install the road wheel arch liners and road wheels. (Refer to 'Road Wheel Nut Torque Tightening', page 4-5-7).
22. Connect the vehicle battery.
