Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)06 · 05 Driveline
06 · Transmission

Halfshafts: Specifications

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Halfshafts › Specifications
05 DrivelineSpecifications

Specifications

Torque Figures
DescriptionNm.    lb. / ft.
Halfshaft nut300    221.5
Halfshaft to differential70    52

Maintenance

Halfshaft

Repair Operation Time (ROT)
ItemCode
Halfshaft Renew(LH) 05.05.AB
(RH) 05.05.BB

Removal

  1. Raise the vehicle and make safe.
  2. For each affected wheel station remove the road wheel(s).
  3. Remove the halfshaft nut.

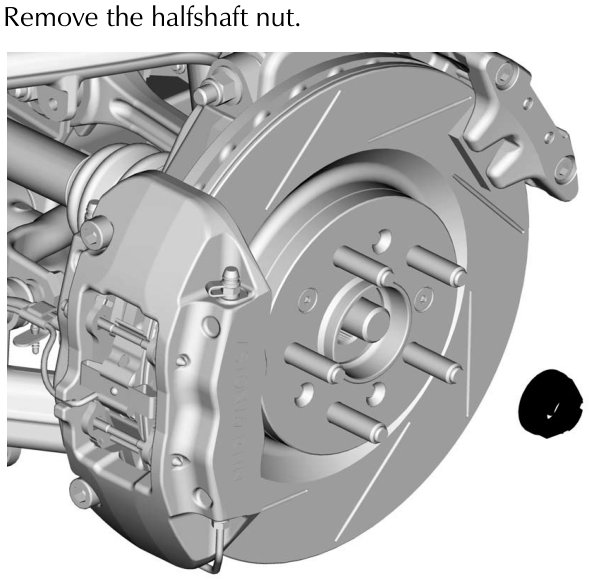

View of the wheel hub and brake assembly showing the halfshaft nut location
  1. Remove bolts (x6) and washer tabs (x3). Discard bolts.

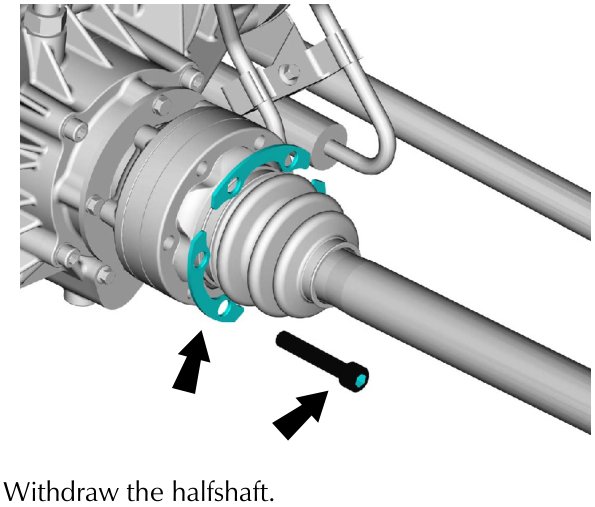

View of the halfshaft connection at the differential output with arrows indicating bolts and washers to be removed
  1. Withdraw the halfshaft.

Installation

Position the halfshaft through the vertical link.

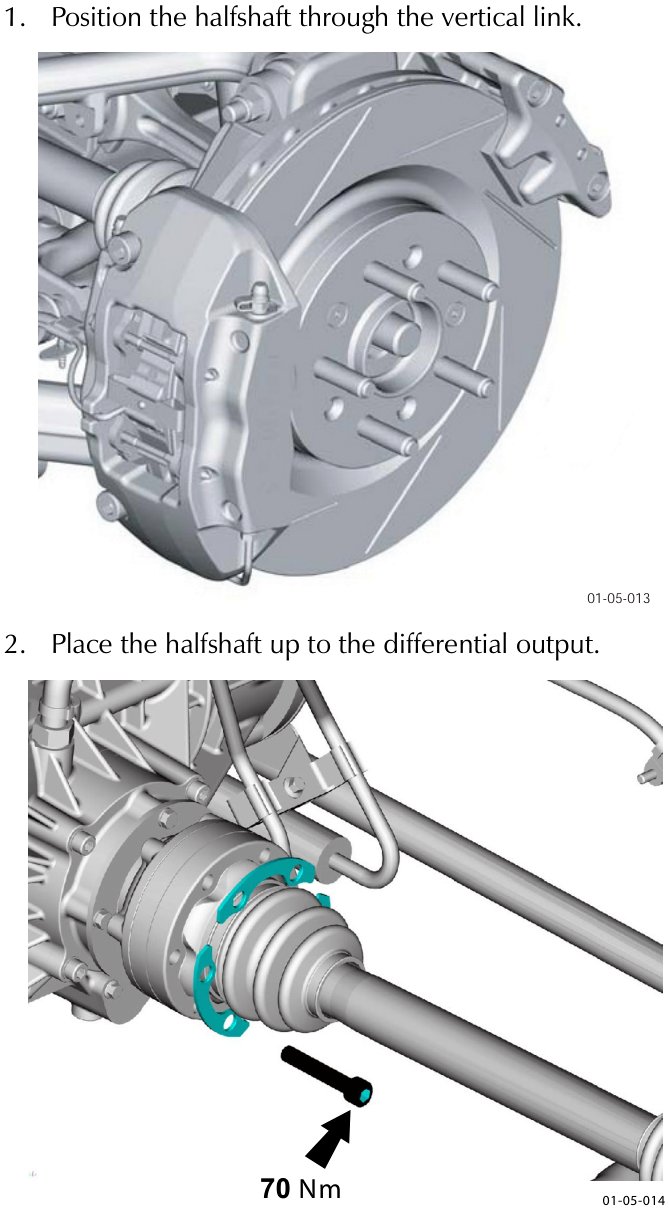

View of the halfshaft being positioned through the vertical link towards the differential
  1. Place the halfshaft up to the differential output.
View of the halfshaft installed at the differential output with an arrow pointing to a bolt torqued to 70 Nm
  1. Install the washer tabs (x3) and new bolts (x6). Torque bolts to 70 Nm.

New bolts should have a thread lock coating.

  1. Install the halfshaft nut. Torque nut to 300 Nm.
  2. Install the road wheel(s) (Refer to ‘Road Wheel Nut Torque Tightening’, page 4-5-7).
