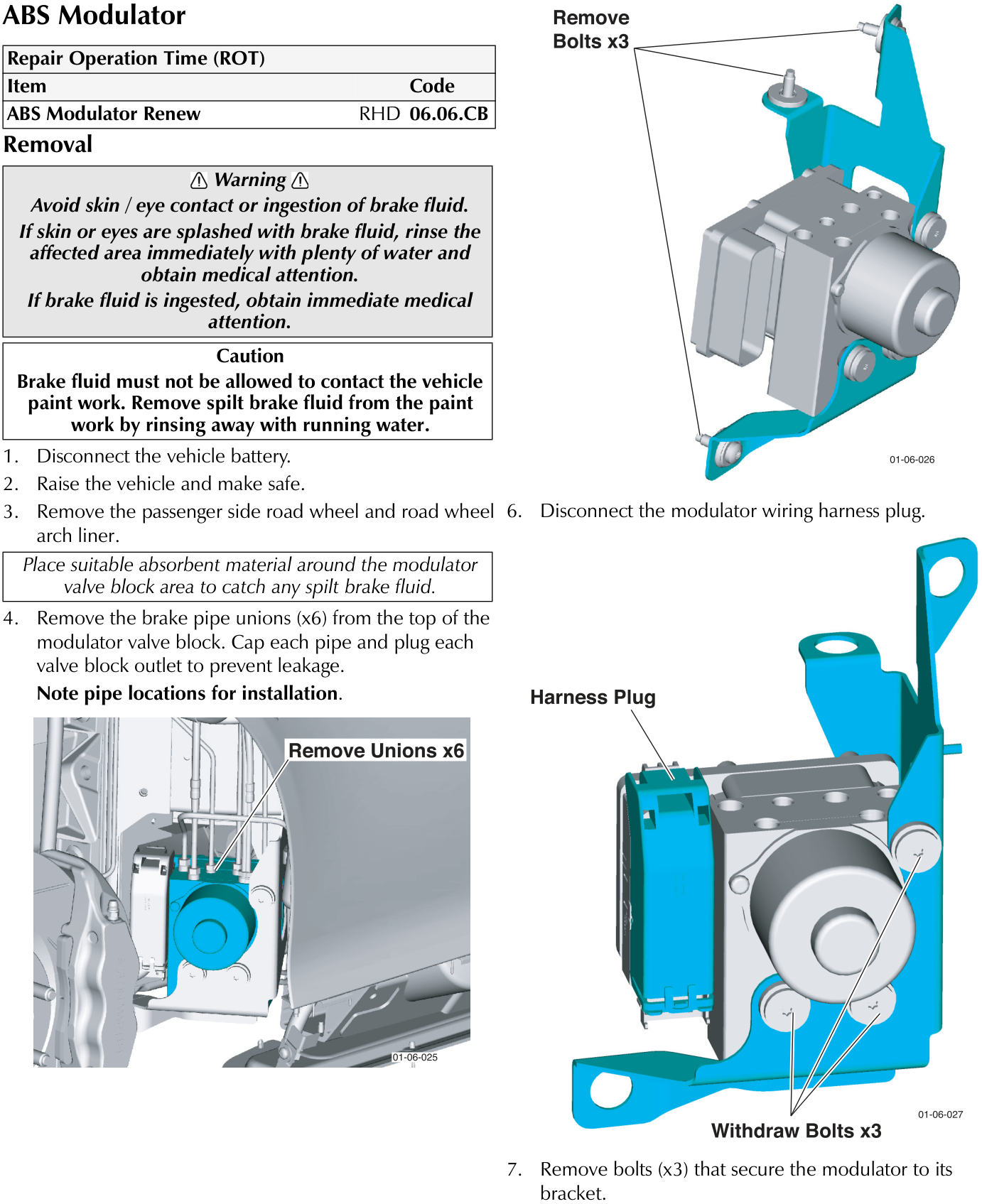

ABS Modulator

ABS Modulator

Removal

⚠ Warning
Avoid skin / eye contact or ingestion of brake fluid. If skin or eyes are splashed with brake fluid, rinse the affected area immediately with plenty of water and obtain medical attention.
If brake fluid is ingested, obtain immediate medical attention.

Caution
Brake fluid must not be allowed to contact the vehicle paint work. Remove spilt brake fluid from the paint work by rinsing away with running water.

1. Disconnect the vehicle battery.
2. Raise the vehicle and make safe.
3. Remove the passenger side road wheel and road wheel arch liner.

Place suitable absorbent material around the modulator valve block area to catch any spilt brake fluid.

4. Remove the brake pipe unions (x6) from the top of the modulator valve block. Cap each pipe and plug each valve block outlet to prevent leakage.
   Note pipe locations for installation.

5. Release bolts (x3) that secure the modulator mounting.

6. Disconnect the modulator wiring harness plug.

7. Remove bolts (x3) that secure the modulator to its bracket.

The ABS / DSC control module can be renewed separately from the modulator and can be removed from the vehicle without disturbing the hydraulic circuit.
