Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)13 · 12 Climate control
13 · Heating & A/C

Maintenance

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Heater System › Maintenance
12 Climate controlMaintenance · page 1 of 2

Maintenance

Blower Motor

Repair Operation Time (ROT)
ItemCode
Blower Motor Renew12.02.BB

Removal

  1. Disconnect the vehicle battery.
  2. Disconnect the wiring harness plug.

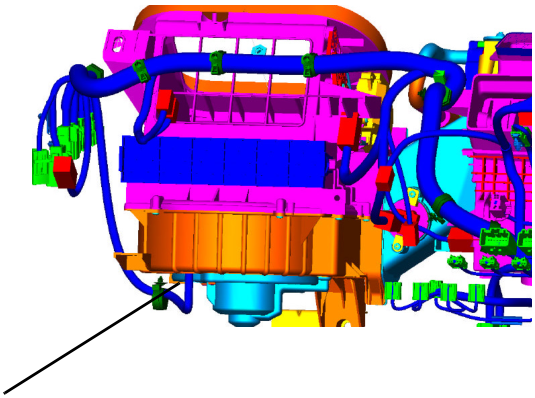

Blower motor assembly installed in vehicle dashboard
  1. Remove screws (x3). Withdraw the blower motor.

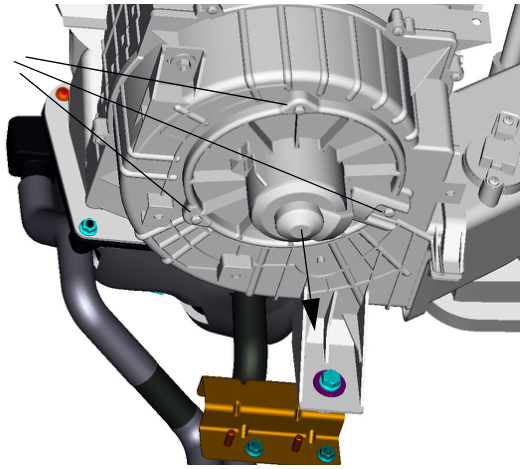

Close-up of blower motor showing three mounting screw locations and wiring connector

Installation

  1. Install the blower motor to the blower unit body.
  2. Install bolts (x3). Connect the wiring harness plugs.

Inspection

  1. Connect the battery positive voltage to blower motor terminal 1, ground to terminal 2, and then verify that the blower motor operates smoothly.
Schematic diagram of blower motor with terminals labeled 1 and 2 and motor symbol M

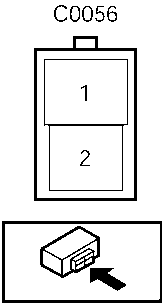

Diagram showing blower motor terminal layout with labels 1 and 2, and a wiring connector being plugged in
  1. If the operation condition is not normal, replace the blower motor.
