13 Information, gauge and warningMaintenance · page 2 of 2
  1. Place the DIM to it's mounting point. Connect the wiring harness plug.
  2. Install the DIM (screws x4).
  3. Install the DIM bezel (screws x5).

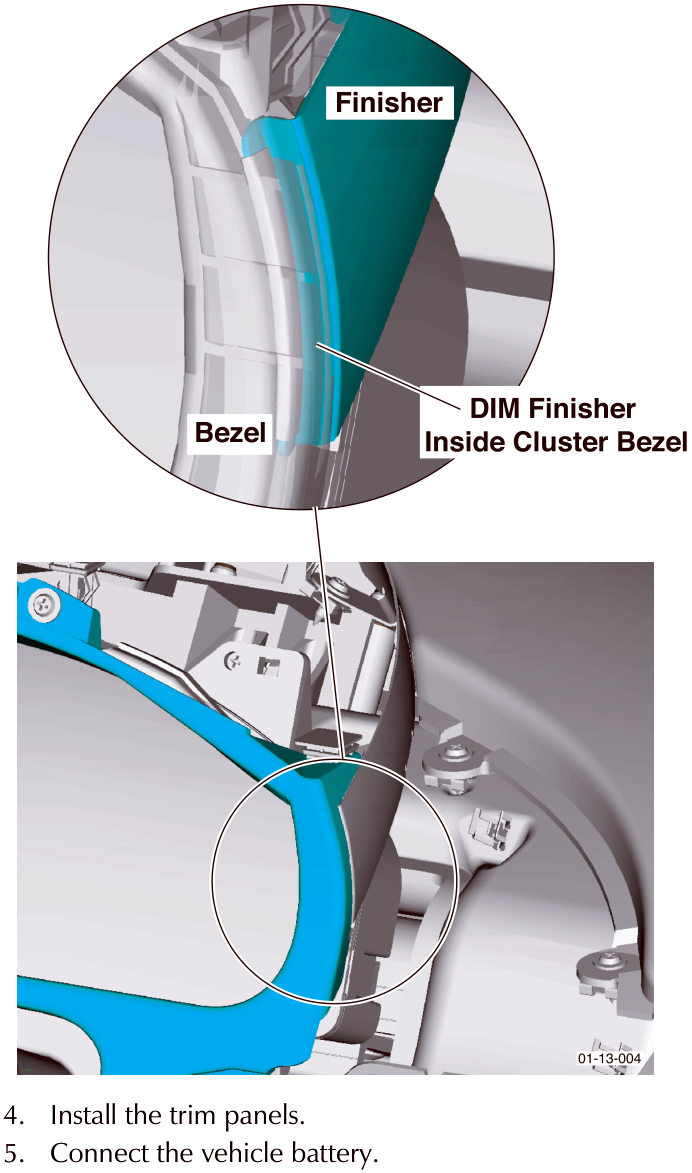

Ensure that the DIM finishers install on the inside of the cluster bezel.

Diagram showing the DIM Finisher installed inside the Cluster Bezel, with labels for the Finisher and Bezel components.
  1. Install the trim panels.
  2. Connect the vehicle battery.
