+12 Volt Distribution (page 2 of 2)
- Make
- Aston Martin
- Model
- DB9 Factory Workshop Manual
- Year
- Issue 2, 2005
- Section
- Battery System
14 Power supply+12 Volt Distribution · page 2 of 2

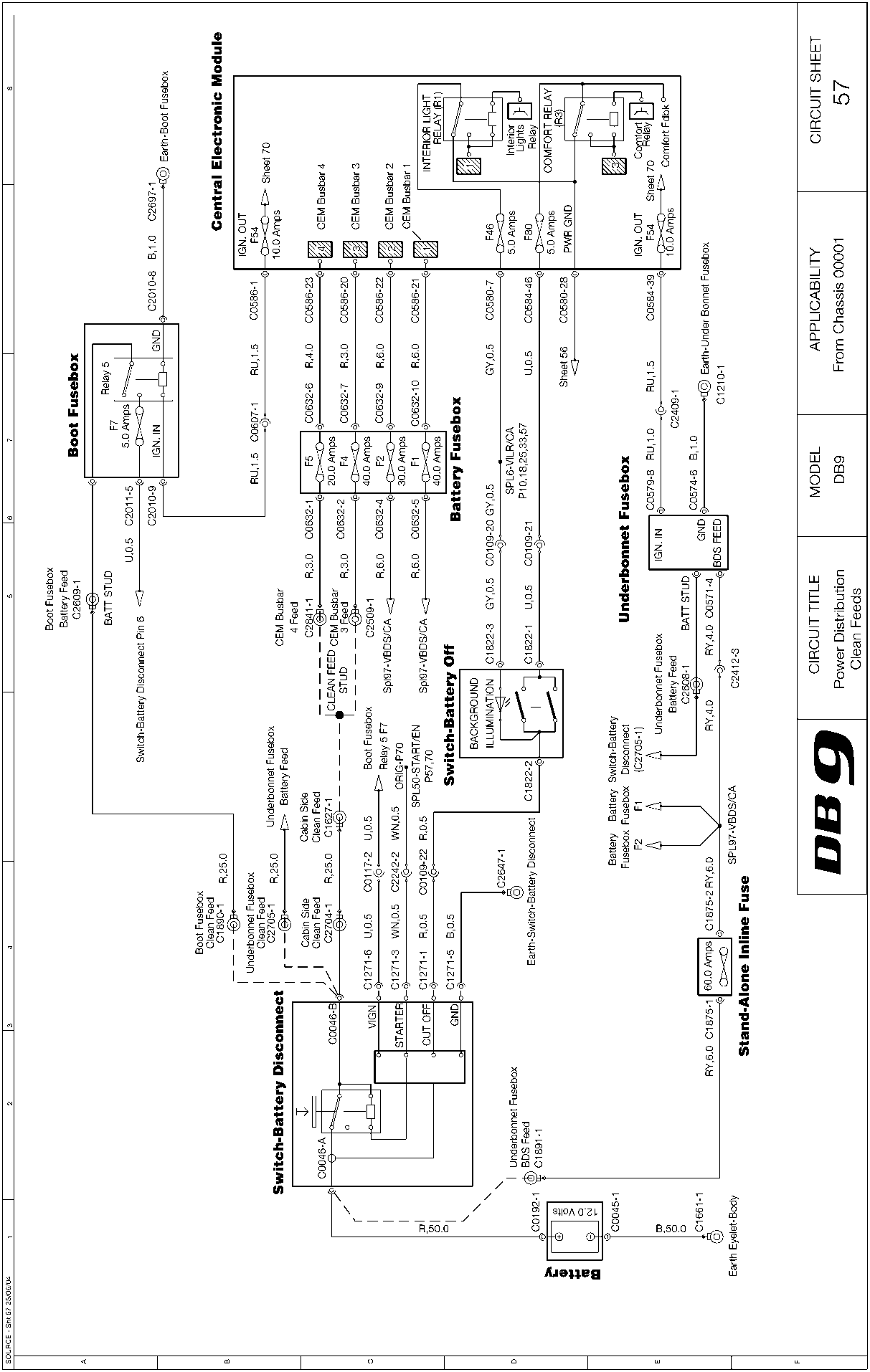

+12 Volt Distribution (page 2 of 2) – diagram from the 14 Power supply chapter of the Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005) factory manual.
| CIRCUIT SHEET | 57 |
|---|---|
| APPLICABILITY | From Chassis 00001 |
| MODEL | DB9 |
| CIRCUIT TITLE | Power Distribution Clean Feeds |
| SOURCE - Sht 57 25/06/04 | 1 |
