Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)18 · 17 Lighting
18 · Electrical

Lighting (17.00)

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Interior Lighting › Lighting (17.00)
17 LightingLighting (17.00) · page 1 of 2

Lighting (17.00)

Interior Lighting (17.02)

Specifications

Bulbs

RatingType
Reading lamp3WW3W
Rear occupant lamp3WW3W
Boot lamp3WW3W

Maintenance

Interior Light Bulb Renew

Repair Operation Time (ROT)
ItemCode
Interior Bulb Renew17.02.AB
  1. Taking care to protect the trim panel, lever the lamp unit from the trim panel.

Lever the lamp unit from the trim panels inline with the locating clips.

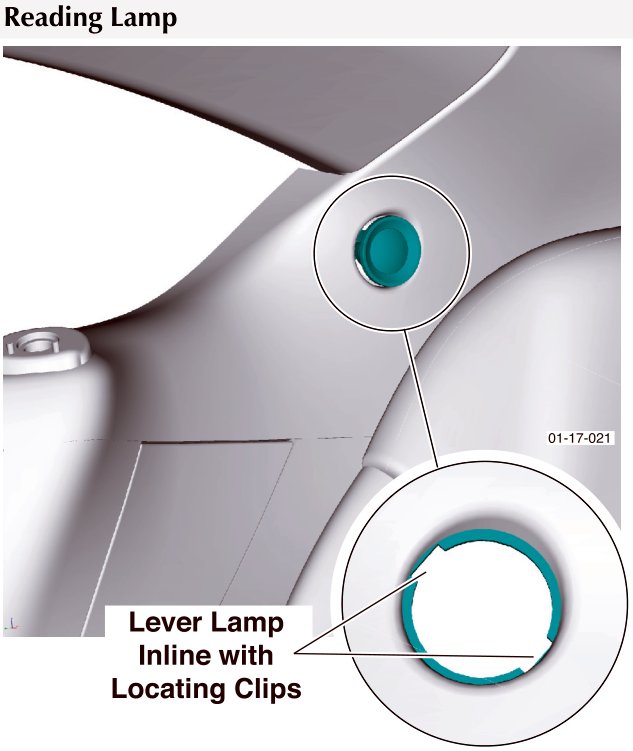

Reading Lamp

Diagram of reading lamp location on interior trim panel showing lever lamp inline with locating clips

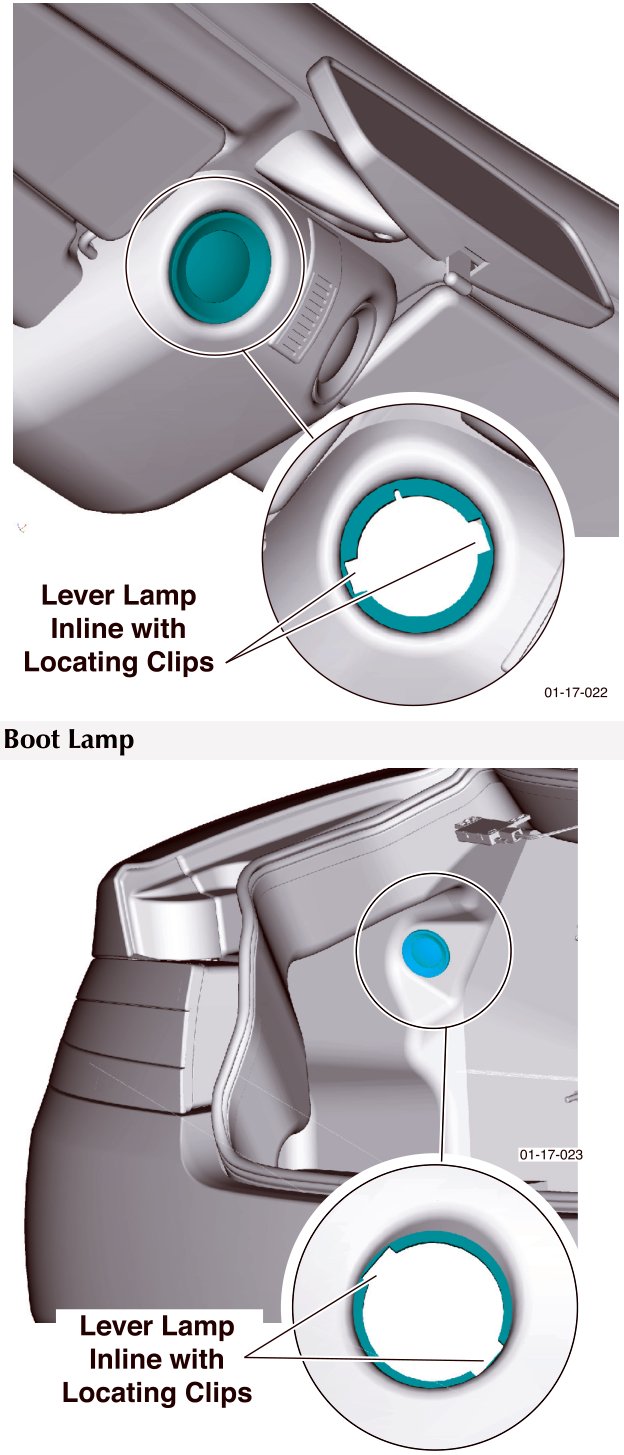

Rear Quarter Lamp

Diagram of rear quarter lamp location on interior trim panel showing lever lamp inline with locating clips

Boot Lamp

  1. Twist the bulb holder approx. 20° anti-clockwise and withdraw the bulb holder. Pull the from the bulb holder and install a new bulb.
  2. Push the lamp unit back into the recess in the trim panel.
