Alarm System Overview

Alarm System Overview

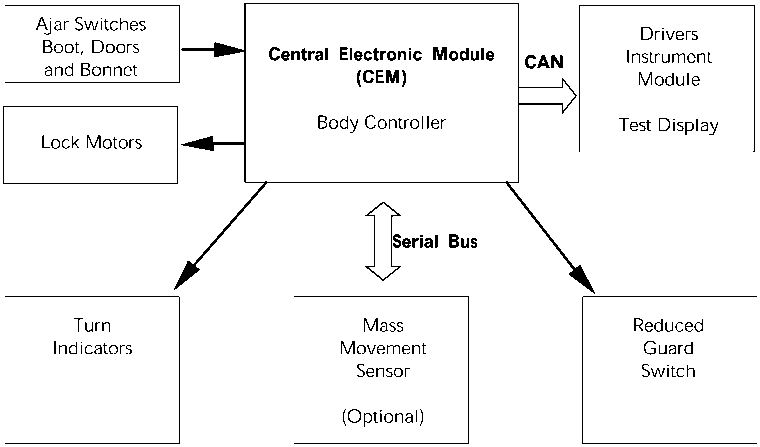

All alarm and central locking operations are controlled from within the Central Electronic Module (CEM).

Communications with the Mass Movement Sensor, the Instrument Module, the Remote Key Less Entry Function and the Battery Backed Sounder are via data buses.

Component Descriptions

Battery Backed Sounder

This device produces the audible out-put from the alarm system. The sounder can also house a tilt sensor to detect unauthorised vehicle movement.

Guard Reduction Switch

Used to disable the mass movement sensor, double locking and tilt sensor, so that people or animals can be left in the vehicle.

Mass Movement Sensor (optional)

Detects movement within the cabin of the car using microwaves. It is specifically designed to protect the ignition barrel and lock.

Central Electronics Module (CEM)

This module controls the vehicle alarm system. The CEM controls all alarm system inputs and outputs.

Driver Information Module (DIM)

Instrument Cluster

The message centre right provides text messages displaying alarm information to the user.

Ajar switches (perimeter sensors)

The car is equipped with ajar switches to sense unauthorised access to the following areas:

• Doors (Cabin area)
• Boot (Luggage compartment)
• Bonnet (Engine bay)

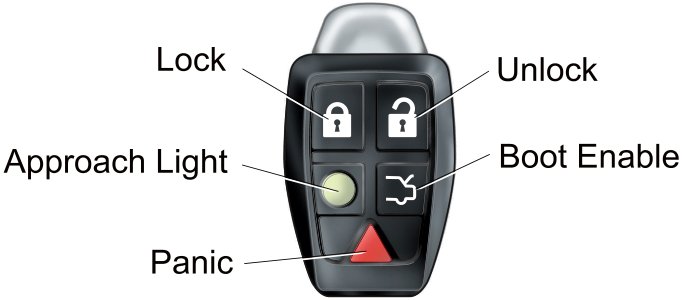

Remote Transmitter

Remote Key less Entry (RKE)

Controls the vehicle locking functionality (Refer to the vehicles Owner's Guide for operation).
