Special Tools - Pictorial Index
20 Appendix and glossaryAbbreviations · page 2 of 4

Appendix & Glossary

Issue 2 November 2004

Part No. / DescriptionPart No. / Description

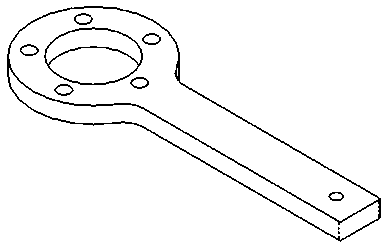

204-524 (Front Suspension Support)

A flat metal support tool with a circular flange containing four holes and a long handle ending in two holes.

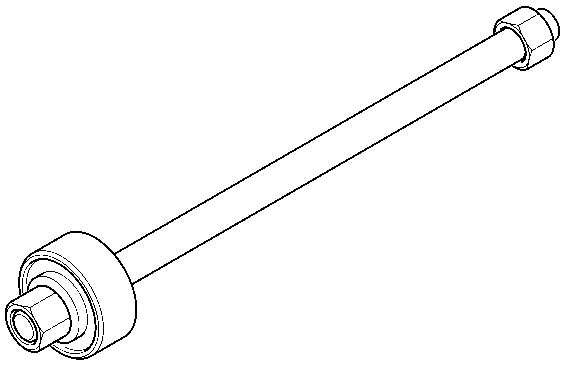

205-521 (Rear Subframe Bush Removal)

A long cylindrical metal rod with a hexagonal nut at one end and a bushing assembly at the other.

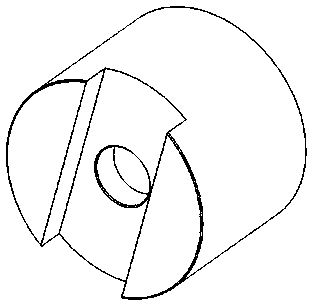

205-791 (Rear Subframe Bush Removal (use with 205-521))

A curved, semi-cylindrical metal component with a central hole and cutouts.

205-792 (Rear Subframe Receiver Cup)

A cup-shaped metal bracket with mounting tabs and a central aperture.

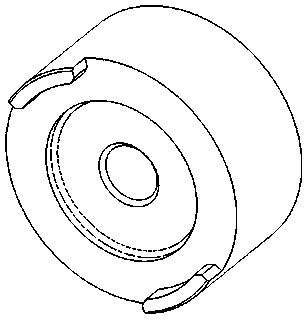

205-793 (Rear Subframe Bush Installer)

A circular ring-like tool with internal threading or grooves and external lugs.

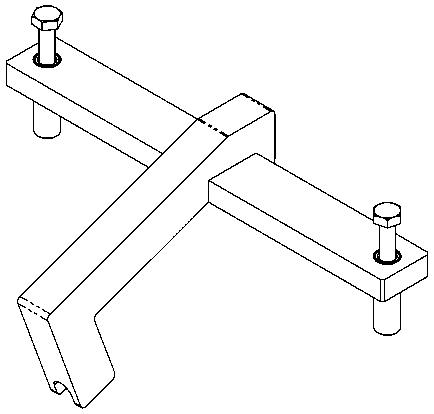

206-100 (Brake Hose Install)

A rectangular metal frame structure with four vertical studs protruding upwards.

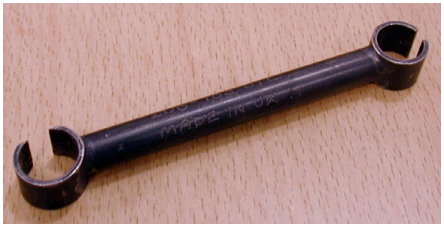

206-103 (Handbrake Cable Removal)

A dark metal open-ended wrench lying on a wooden surface.

303-535 (Cylinder Bore Protectors)

Two cylindrical sleeves held within a rectangular frame structure.

TBA (Crankshaft Rear Oil Seal and Slinger Removal)

Image to Follow

TBA (Crankshaft Rear Oil Seal Slinger Install)

Image to Follow
