Special Tools - Pictorial Index
20 Appendix and glossaryAbbreviations · page 4 of 4

Part No. / Description

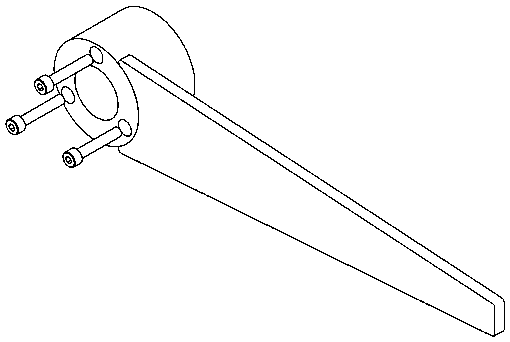

303-1047 (Crankshaft Holding)

A long metal tool with a cylindrical head featuring two protruding pins, used for holding the crankshaft.

303-1072 (Timing Chain Tensioner Pins)

Two metal pins, each consisting of a circular ring at one end and a straight shaft at the other.

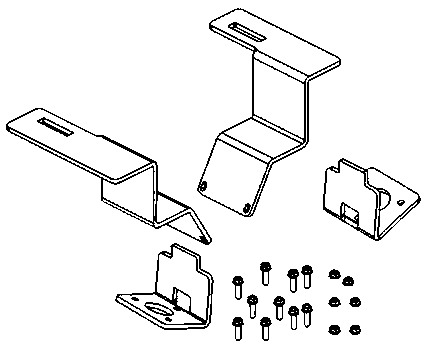

303-1080 (Engine Support Adaptor)

A set of engine support brackets including L-shaped metal pieces and various bolts and nuts.

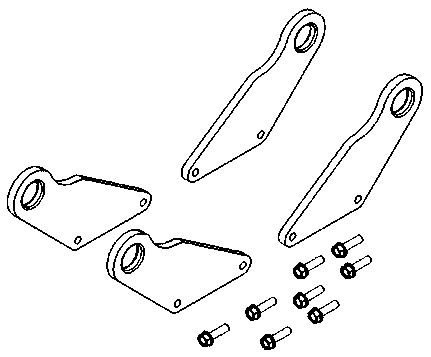

303-1098 (Engine Lifting Brackets)

A pair of curved metal lifting brackets accompanied by several bolts and nuts.

Part No. / Description

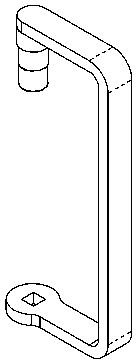

303-1133 (Engine Mount Top Nut Adaptor)

A tall, rectangular metal frame tool with a handle-like structure at the top and a mounting point at the bottom.

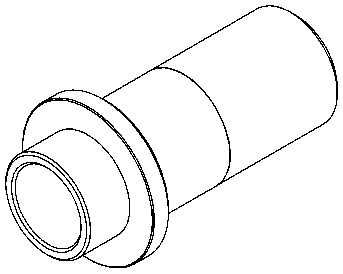

307-521 (Transaxle Seal Instal)

A cylindrical tool with stepped diameters, designed for installing transaxle seals.

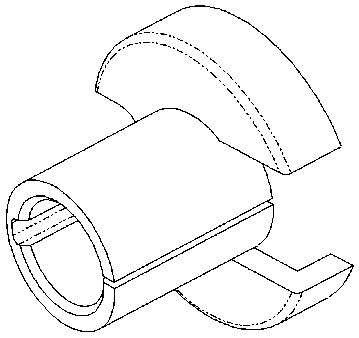

310-040 (Fuel Pipe Disconnect Tool)

A C-shaped tool with a central cylindrical opening and a handle, used for disconnecting fuel pipes.

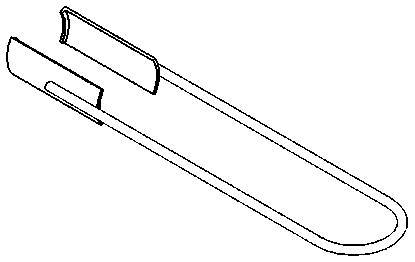

310-134 (Filler Neck Disconnect Tool)

A long, flat metal tool with a U-shaped cutout at one end, designed for disconnecting filler necks.
