20 Appendix and glossaryCaution · page 2 of 2
  1. Wipe the lip of the new oil seal with clean engine oil.
  2. Place the seal install tool, complete with the new oil seal, into position and install the nut and bearing assembly.

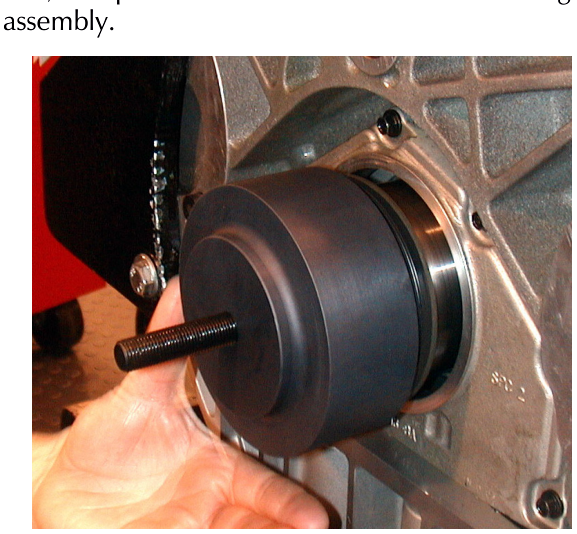

A hand positioning a black cylindrical oil seal install tool against an engine block housing.
  1. Wind the nut and bearing assembly in until the oil seal install tool bottoms out on the oil seal housing.

When the oil seal install tool has bottomed out on the oil seal housing the new oil seal has been installed to the correct depth.

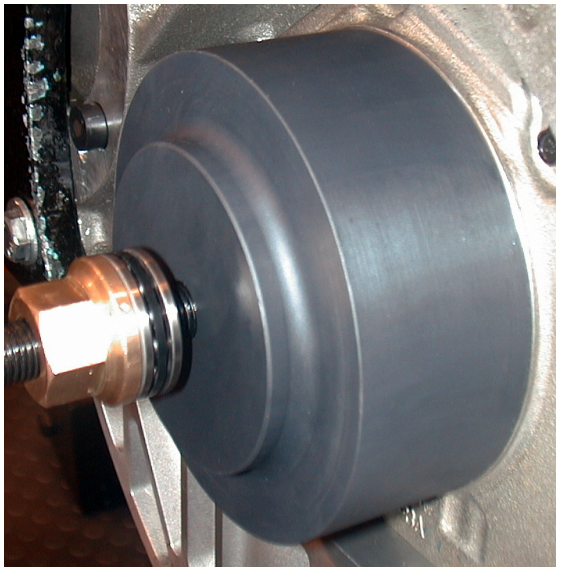

A close-up view of the oil seal install tool fully seated against the engine housing with the nut and bolt assembly visible.
  1. Remove the oil seal install tool. Do not remove the bolt assembly.
  2. Using the oil seal slinger install tool repeat from step two to install the oil seal slinger.

The oil seal slinger installs one way only on the oil seal slinger install tool.

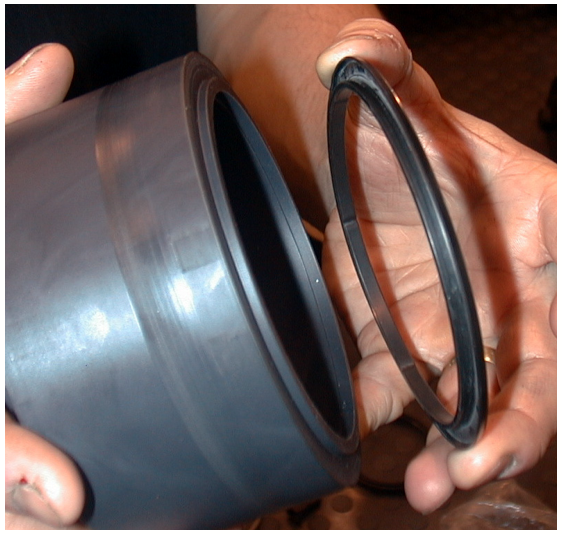

A hand holding a large black cylindrical oil seal slinger next to a thin black rubber O-ring or seal ring.
