Description (page 2 of 2)
- Make
- Aston Martin
- Model
- V8 Vantage Factory Workshop Manual
- Year
- 2005–2010
- Section
- Seating
01 Body systemDescription · page 2 of 2
- Remove release lever (see Figure 1).
- Remove lever cover (see Figure 2).
- Disconnect airbag multiplug and release from bracket (see Figure 3).
- Remove fixing multiplug bracket, move aside (see Figure 4).
- Remove (slide down) airbag module (bolt x1) (see Figure 5).
- Release cover from seat back shell (studs x2 velcrox2) (see Figure 6).
Figure 1

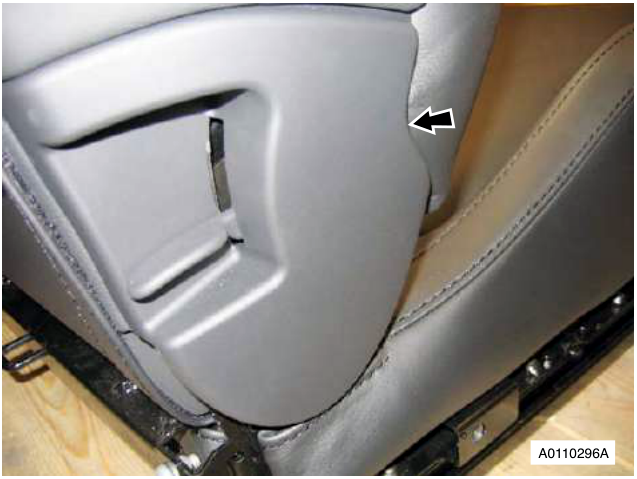

Figure 2
Figure 3

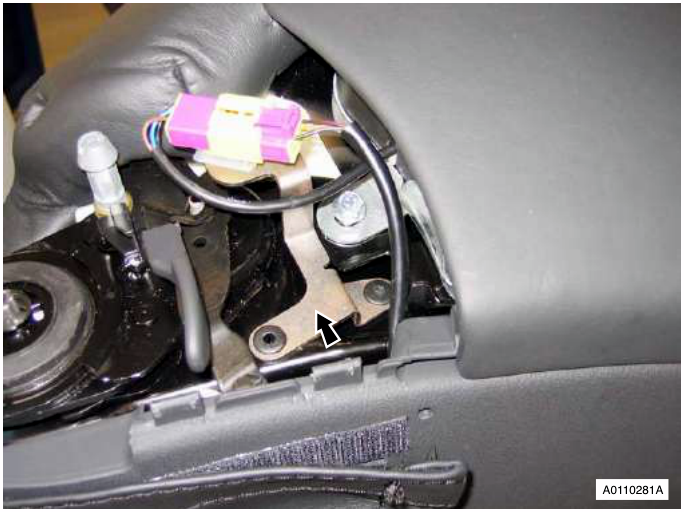

Figure 4

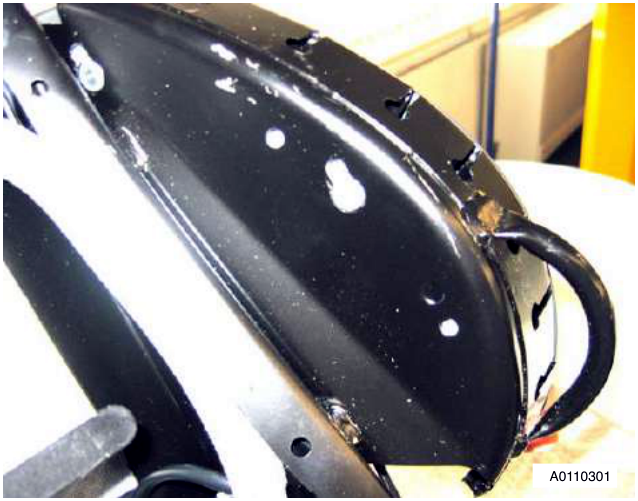

Figure 5

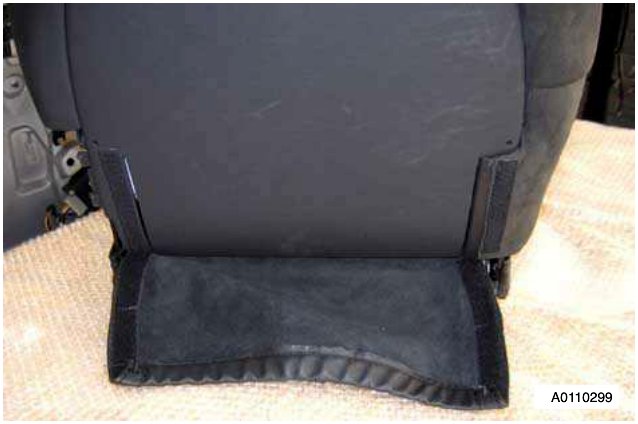

Figure 6
