Removal

  1. Remove 6 way height adjuster (see Workshop Manual procedure 01.10.AE 6 Way Height Adjuster - Including Motors - Renew).

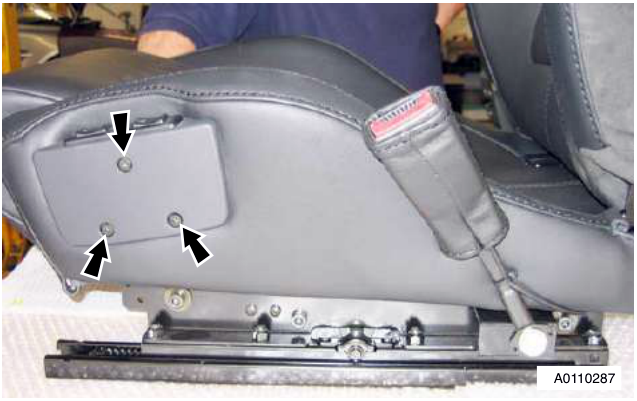

  2. Remove screws (x3) heater and lumbar switch assembly (see Figure 1).
Close-up of seat showing three screws on the heater and lumbar switch assembly
Figure 1
  1. Release switch assembly and disconnect multiplug.

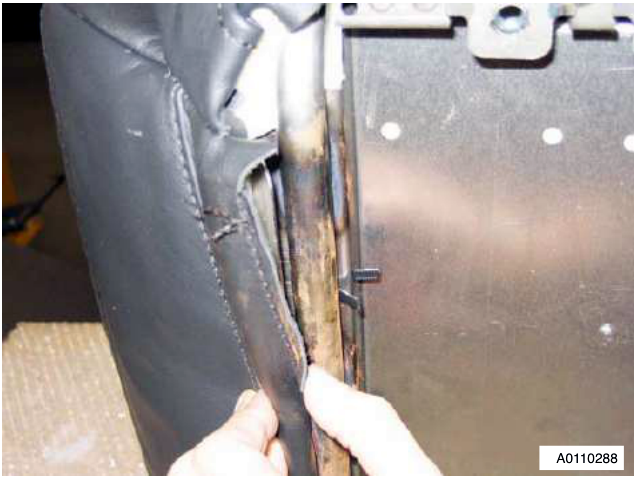

  2. Release cover from cushion frame assembly (see Figure 2).
Close-up of the seat cover being released from the cushion frame assembly
Figure 2

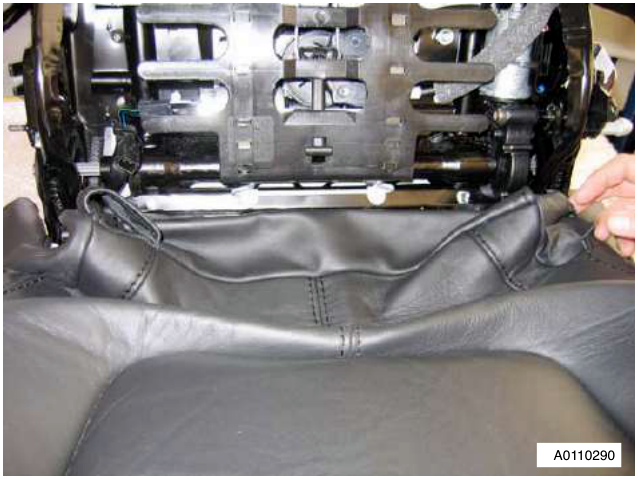

  1. Pull seat cushion cover from between squab and cushion frames and remove cover (see Figure 3).
Close-up of the seat cushion cover being pulled from between the squab and cushion frames
Figure 3

Installation

  1. Connect multiplugs (x2) heater and lumber switch assembly.
  2. Install switch assembly to seat.
  3. Ease cover over cushion foam attach to velcro.
  4. Push cushion flap between cushion and squab and secure to cushion frame assembly.
  5. Secure cushion cover to sides and front edge of seat cushion frame assembly.
  6. Install 6 way height adjuster (see Workshop Manual procedure 01.10.AE 6 Way Height Adjuster - Including Motors - Renew).

6-Way Height Adjuster (Inc. Motors) - Renew

Repair Operation Time (ROT)
ItemCode
6-Way Height Adjuster-Renew01.10.AE

Removal

  1. Power seat fully forward.
  2. Remove bolts (x2) securing rear of seat to seat rails.
  3. Power seat fully rearwards.
  4. Remove bolts (x2) securing front of seat to seat rails.
  5. Battery isolation switch ‘OFF’.
  6. Remove bolt securing seat belt to seat frame.
  7. Tip the seat forwards and disconnect multiplugs (x4).
  8. With assistance, remove seat assembly.
  9. Remove screw (x1) relay to seat cushion base.
