Removal (page 3 of 3)

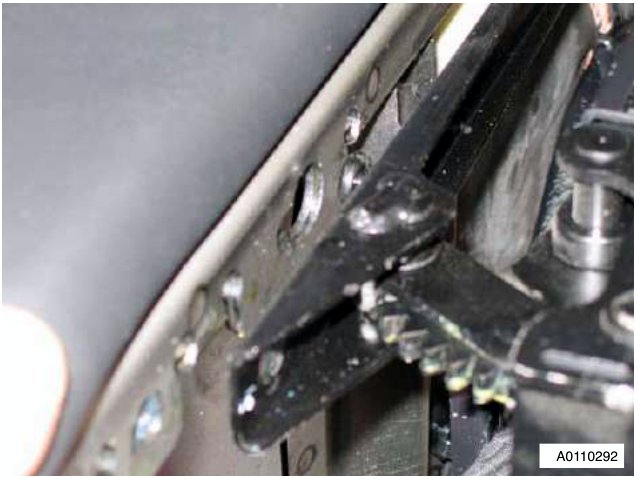

16. Slide 6 way height adjuster to release and remove
    adjuster from seat assembly (see Figure 5).

Installation

1. Install relay to seat cushion base.
2. Connect multiplugs (x3) and secure to 6 way adjuster
   frame.
3. Secure seat belt buckle harness (cable ties x4) to 6 way
   seat adjuster frame assembly.
4. Install a new bolt that attaches the seat belt buckle.
5. Position 6 way height adjuster to seat cushion frame
   assembly and install screws (x4).
6. With assistance, install seat in the vehicle.
7. Position seat belt to seat frame, install and torque
   tighten bolt.
8. Tip seat forwards and connect multiplugs (x4).
9. Position seat onto seat rails.
10. Battery isolation switch ‘ON’.
11. Install front bolts (x2), Power seat forward and install
    rear bolts (x2). Torque tighten bolts (x 4).

Squab Motor Kit - Renew

Removal

1. Remove squab cover (see Workshop Manual procedure
   01.10.AC Cover Assembly - Front Seat Squab - Each -
   Renew).

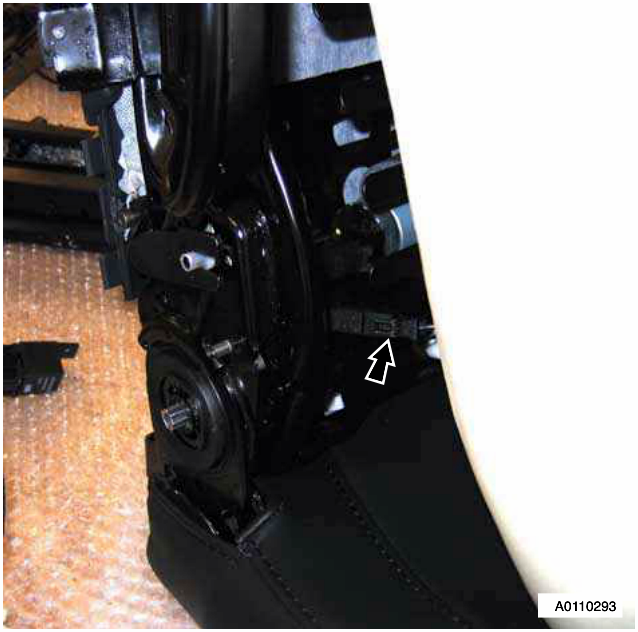

2. Disconnect heater multiplug and remove squab foam
   (see Figure 1).

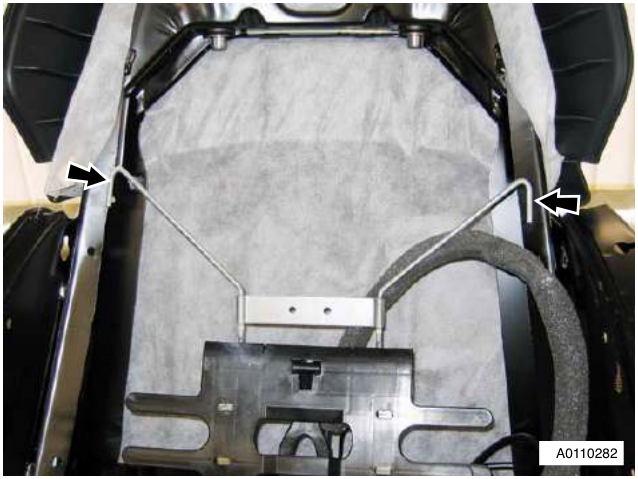

3. Release top mountings of lumbar adjust frame and move
   to access squab motor (see Figure 2).
