01 Body systemRemoval · page 2 of 3
  1. Disconnect multiplugs (x3) seat motors (see Figure 1).

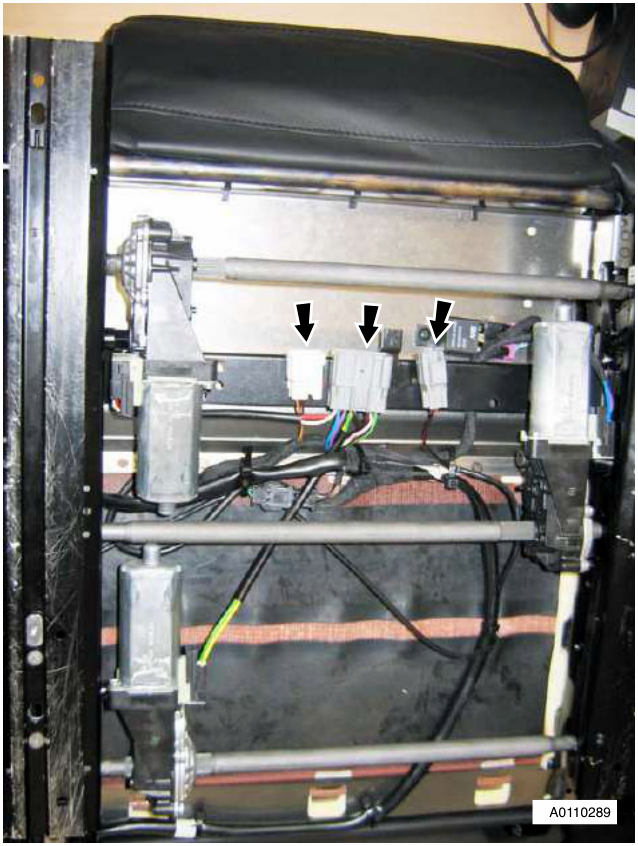

Seat motor multiplug disconnection

Figure 1

  1. Release multiplugs (3) from 6 way seat adjuster frame assembly.
  2. Remove bolt (x1) seat belt buckle to frame (see Figure2).
Seat belt buckle removal

Figure 2

  1. Release cable ties (x4) securing seat belt buckle harness to 6 way seat adjuster frame assembly (see Figure 3).

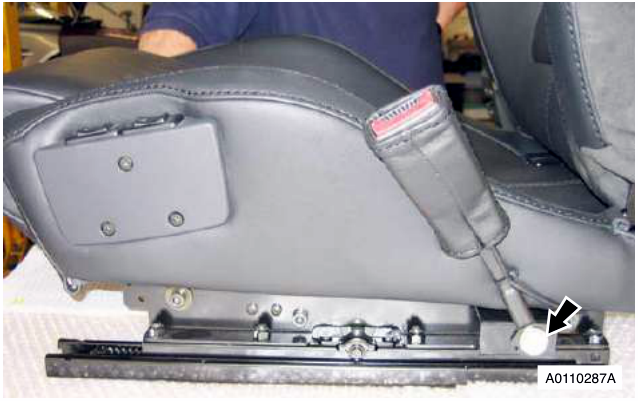

Cable tie release for seat belt buckle

Figure 3

  1. Remove seat belt buckle assembly.
  2. Remove screws (x4) 6 way height adjuster to seat cushion frame (see Figure 4).

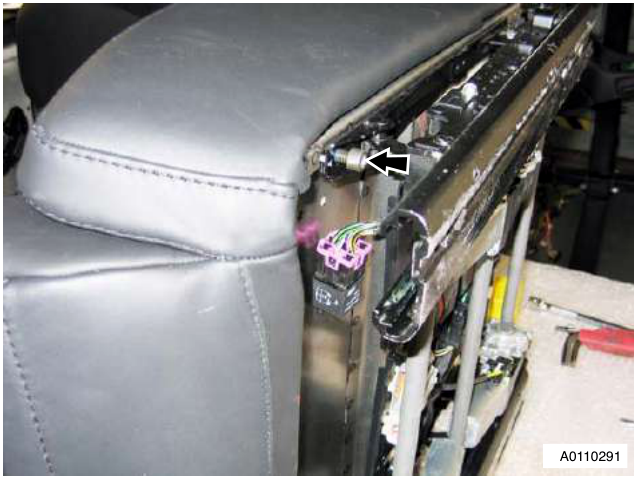

Screw removal for height adjuster

Figure 4
