Aston Martin V8 Vantage Factory Workshop Manual (2005-2010)04 · 03 Engine
04 · Engine

Removal

Make
Aston Martin
Model
V8 Vantage Factory Workshop Manual
Year
2005–2010
Section
Cooling System › Removal
03 EngineRemoval · page 1 of 2

Repair Operation Time (ROT)

ItemCode
Engine Coolant Reservoir Hose - Renew03.03.KA

Removal

  1. Drain cooling system (refer to Workshop Manual procedure 03.03.AD Coolant - Drain and Refill).
  2. Remove screw and nut that attaches the expansion tank to body, move expansion tank aside (to access hose clip).
  3. Release clip and disconnect hose from expansion tank.
  4. Remove hose from engine (quickfit).
  5. Release hose from body clip, remove hose.

Installation

  1. Install hose, secure in body clip.
  2. Install hose to expansion tank, secure with clip.
  3. Install and secure hose to engine (quick fit).
  4. Install and torque tighten screw and nut that attaches the expansion tank to body.
  5. Refill cooling system (refer to Workshop Manual procedure 03.03.AD Coolant - Drain and Refill).

Water Inlet/Outlet Manifold - Renew

Repair Operation Time (ROT)

ItemCode
Water Inlet/Outlet Manifold - Renew LHD03.03.MH
Water Inlet/Outlet Manifold - Renew RHD03.03.MJ

Removal

  1. Remove reservoir bracket assembly - vacuum system (refer to Workshop Manual procedure 03.08.AE Reservoir and Bracket Assembly - Vacuum System - Renew).
  2. Disconnect bottom hose (clip x1) (refer to Figure 1).

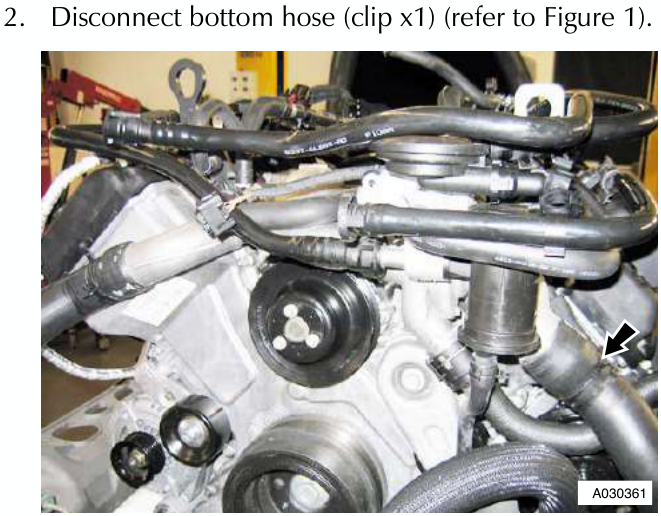

Engine bay showing coolant hoses and components with an arrow pointing to a connection point on the right side of the manifold area.

Figure 1

  1. Disconnect top hose (clip x1) (refer to Figure 2).
Engine bay showing coolant hoses and components with an arrow pointing to a connection point on the left side of the manifold area.

Figure 2
