03 EngineRemoval · page 2 of 2

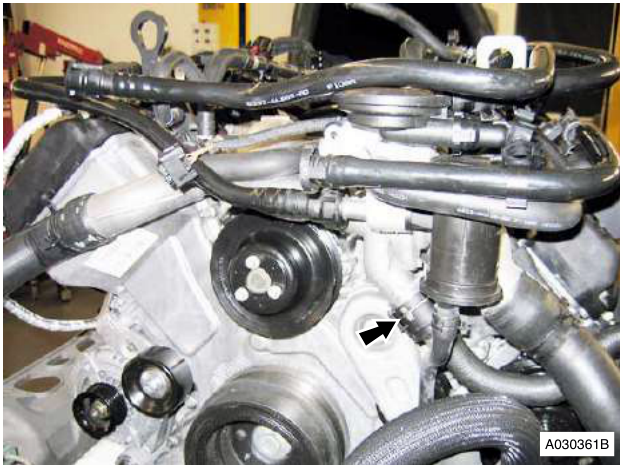

  1. Disconnect expansion tank feed hose (quickfit) (refer to Figure 3).
Engine bay showing hoses and components with an arrow pointing to a connection point on the right side

Figure 3

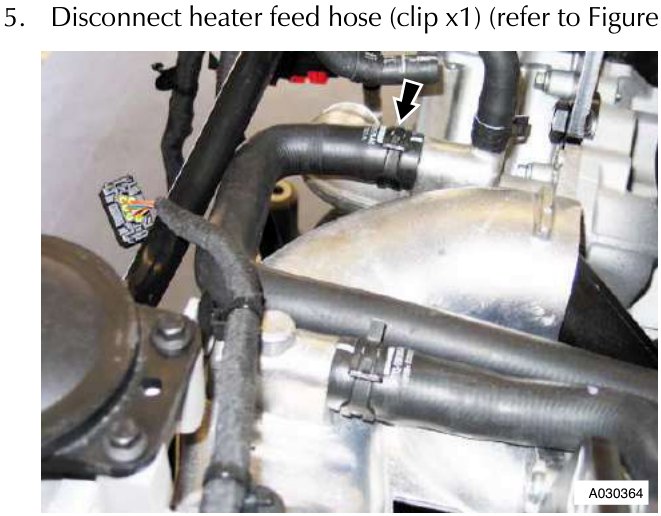

  1. Disconnect heater feed hose (clip x1) (refer to Figure 4).
Close-up of black rubber hoses connected to a metal component with an arrow pointing to a clip securing a hose

Figure 4

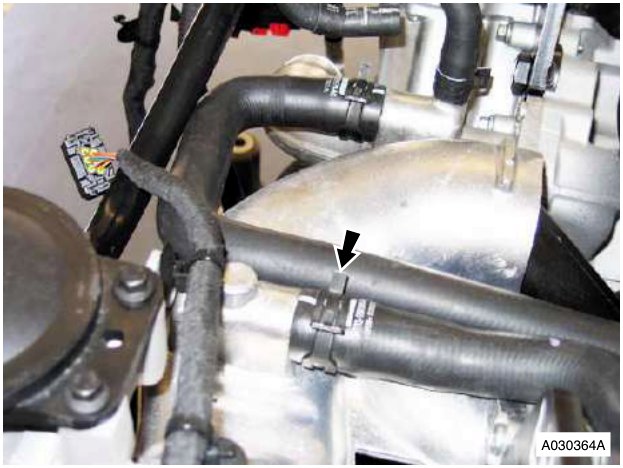

  1. Disconnect heater return hose (clip x1) (refer to Figure 5).
Close-up of black rubber hoses connected to a metal component with an arrow pointing to a clip securing a lower hose

Figure 5

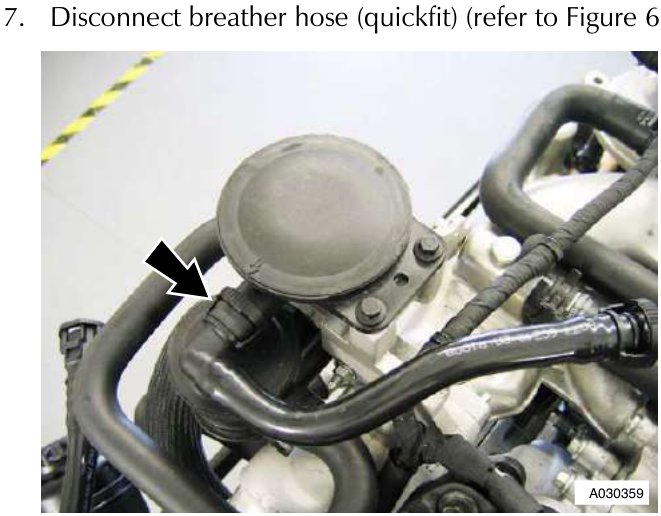

  1. Disconnect breather hose (quickfit) (refer to Figure 6).
Engine component with a circular cap and surrounding hoses, with an arrow pointing to a quickfit connector on a curved hose

Figure 6

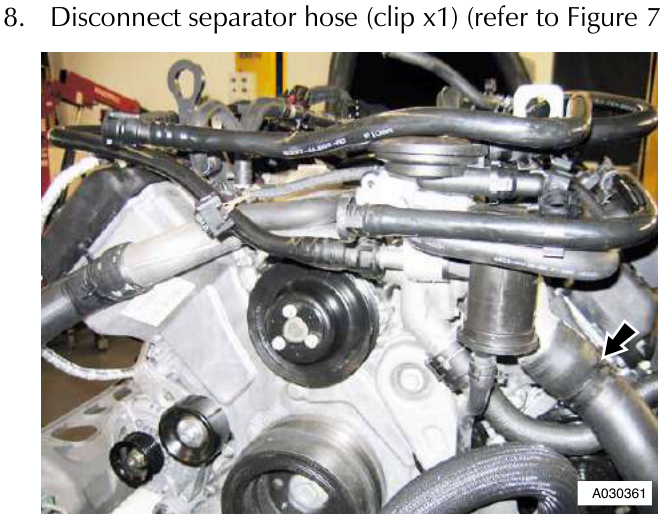

  1. Disconnect separator hose (clip x1) (refer to Figure 7).
Engine assembly showing various hoses and wiring, with an arrow pointing to a hose secured by a clip near the bottom right

Figure 7

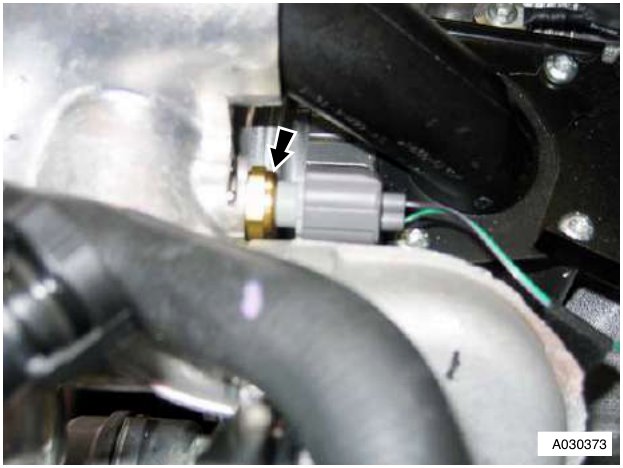

  1. Disconnect coolant temperature multiplug (refer to Figure 8).
Close-up of a grey electrical multiplug connector attached to a silver metal engine component, with an arrow pointing to the connection point

Figure 8

  1. Remove harness clips (x2).
  2. Remove 4th bolt of vacuum tank bracket fixing (refer to Figure 9).
