Figure 2

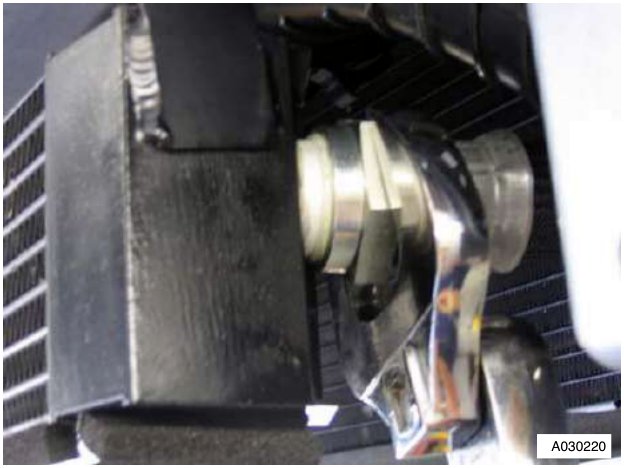

6. Remove pipe from oil cooler and pull out from inner wing (position container to catch oil) (refer to Figure 2).

Figure 2

Installation

1. Install pipe to oil cooler (torque) through inner wing.
2. Clip pipe (x4) to inner wing.
3. Install pipe to oil thermostat and ensure correct alignment in oil tank bracket.
4. Install undertray (refer to Workshop Manual procedure 01.02.NB Undertray - Front - Renew).
5. Lower vehicle on ramp.
6. Install LH air filter box (refer to Workshop Manual procedure 03.12.AB Air Filter Box LH Renew).
7. Fill tank with approximately amount of displaced oil and replace cap.
8. Use handbook procedure to check oil level.

Oil Temperature Controller - Renew

Remove

1. Raise vehicle on ramp.
2. Remove undertray (refer to Workshop Manual procedure 01.02.NB Undertray - Front - Renew).

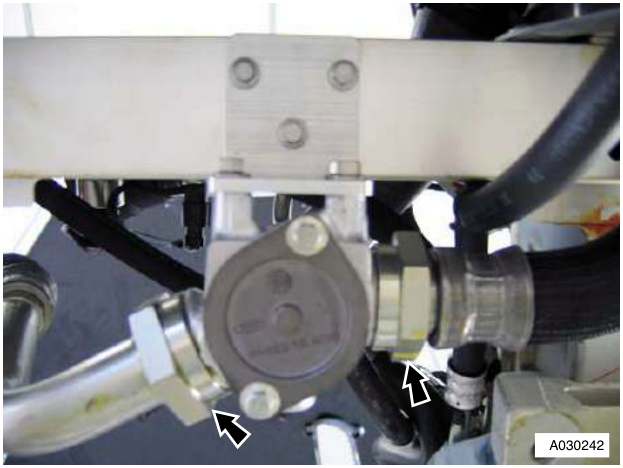

3. Remove pipes from oil thermostat (position container to catch oil) (refer to Figure 1).

Figure 1

4. Remove controller from body (bolts x2).

Install

1. Install controller to body (bolts x2) (torque).
2. Install pipes to oil thermostat (torque) ensure correct alignment in oil tank bracket.
3. Install undertray (refer to Workshop Manual procedure 01.02.NB Undertray - Front - Renew).
4. Fill tank with approximately amount of displaced oil and replace cap.
5. Use handbook procedure to check oil level.
6. Lower vehicle on ramp.

Oil Sump Pan - Renew (with Engine Removed)

Removal

1. Remove oil sump (refer to Workshop Manual procedure 03.02.CN Pan - Oil Sump - Remove and Reseal With Engine Removed).

WARNING
DO NOT GET USED ENGINE OIL ON YOUR SKIN.
USED ENGINE OIL CAN BE HARMFUL.

WARNING
DO NOT GET USED ENGINE OIL ON YOUR SKIN.
USED ENGINE OIL CAN BE HARMFUL.
