Removal

Removal

1. Remove the PAS pump (refer to Workshop Manual procedure 03.05.AA Pump - Power Steering - Renew).

WARNING
DO NOT GET USED ENGINE OIL ON YOUR SKIN.
USED ENGINE OIL CAN BE HARMFUL.

2. Remove pipe from oil controller (position container to catch oil).

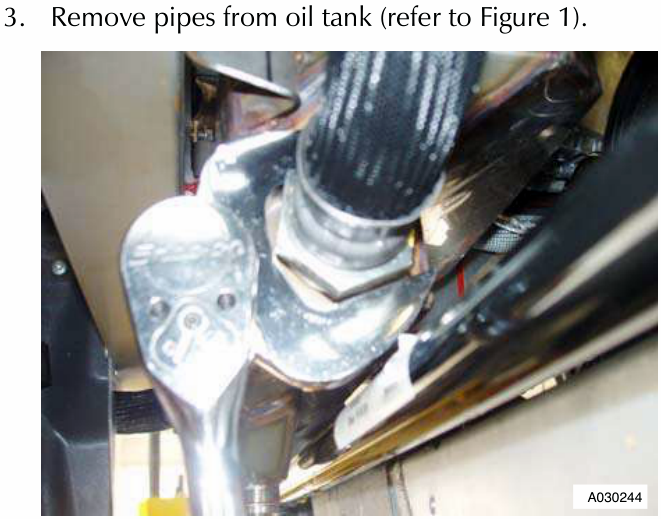

Figure 1

4. Raise vehicle on ramp.
5. Remove undertray (refer to Workshop Manual procedure. 01.02.NB Undertray - Front - Renew).

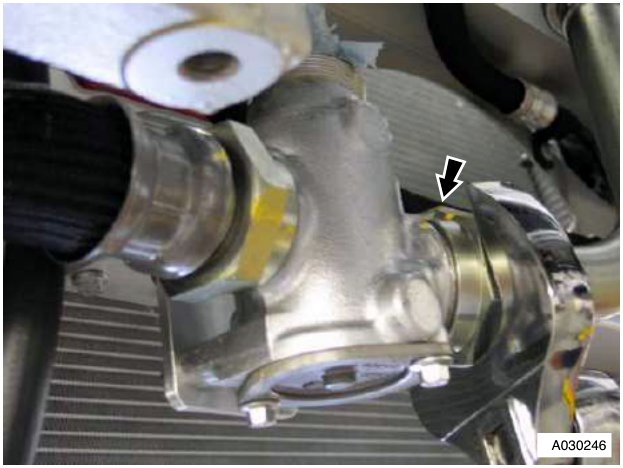

6. Remove pipe from oil thermostat (position container to catch oil) (refer to Figure 2).

Figure 2

Installation

1. Install pipe to oil thermostat (torque) ensure correct alignment in oil tank bracket.
2. Install undertray (refer to Workshop Manual procedure 01.02.NB Undertray - Front - Renew).
3. Lower vehicle on ramp.
4. Install oil pipe to tank.
5. Install throttle body duct.
6. Connect breather pipe quickfits (x2) to air cleaner duct.
7. Fill tank with approximately amount of displaced oil and replace cap.
8. Use handbook procedure to check oil level.

Oil Pump Inlet Tube Assembly - Renew

Removal

1. Remove the PAS pump (refer to Workshop Manual procedure 03.05.AA Pump - Power Steering - Renew).
2. Remove pipe from oil controller (position container to catch oil).

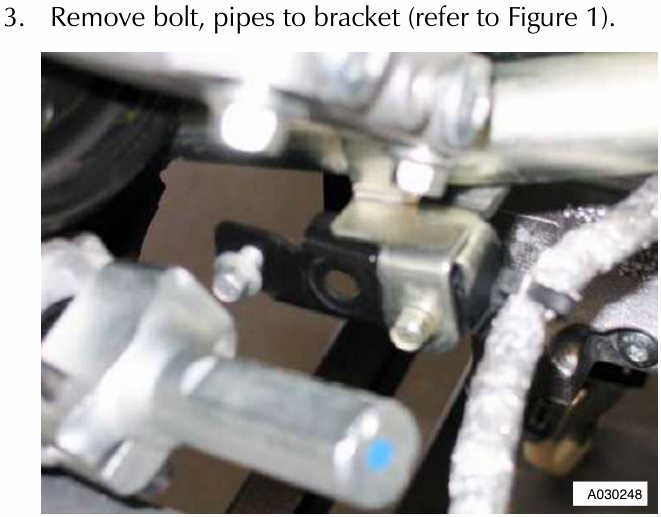

Figure 1

4. Remove LH exhaust manifold (refer to Workshop Manual procedure 09.00.CD Gasket - Exhaust Manifold - LH - Renew).

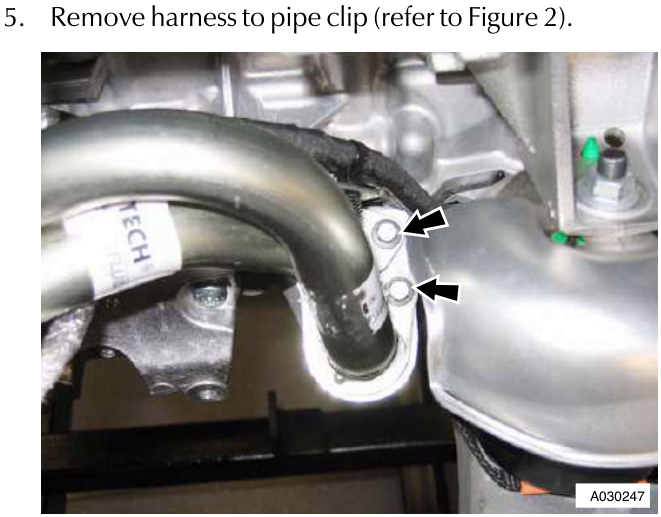

Figure 2

6. Remove bolts that attach the oil pipes to block.
7. Release both pipes from block and remove inlet pipe.

Installation

1. Renew O-ring on remaining oil pipe.
2. Install inlet pipe and position both pipes into block.
