A4 Cabriolet Mk2

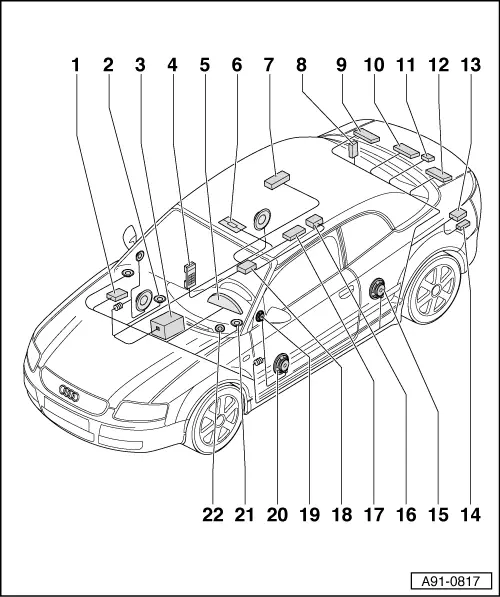

| Overview of fitting locations |
| 1 - | CD changer -R41- |
| q | In glove box |
| 2 - | Internal loudspeaker -R70- |
| q | In dash panel (front centre) |
| 3 - | Navigation operating electronics control unit -J402- |
| q | In centre console (top) |
| 4 - | Telephone handset -R37- |
| q | On centre console (top right) |
| q | Removing and installing → Chapter |
| 5 - | Display in instrument cluster |
| q | Removing and installing instrument cluster: → Electrical system; Rep. Gr.90 |
| 6 - | Interior light with emergency call button -E276-, breakdown help button -E275-, telephone microphone -R38- |
| q | In front interior light -W1- |
| q | Removing and installing breakdown help button -E275- and emergency call button -E276- → Chapter |
| q | Removing and installing telephone microphone -R38- → Chapter |
| 7 - | Additional aerial for telematics -R90- |
| q | Behind side trim (right-side) |
| q | Removing and installing → Chapter |
| 8 - | Amplifier -R12- |
| q | In luggage compartment, behind side trim (right-side) |
| 9 - | Right aerial module -R109- |
| q | Behind boot lid trim |
| 10 - | Telephone aerial -R65- |
| q | Behind boot lid trim |
| q | Overview → Chapter |
| q | Removing and installing → Chapter |
| 11 - | Aerial for navigation system -R50- |
| q | Behind boot lid trim |
| q | Overview → Chapter |
| q | Removing and installing → Chapter |
| 12 - | Left aerial module -R108- |
| q | Behind boot lid trim |
| 13 - | Navigation interface -R94- |
| q | In luggage compartment, behind side trim (left-side) |
| 14 - | Navigation/TV tuner -J415- |
| q | In luggage compartment, behind side trim (left-side) |
| 15 - | Loudspeaker, rear left -R4- / loudspeaker, rear right -R5- |
| q | In side trim (bottom) |
| 16 - | Fax unit -R73- (connector for fax/laptop) |
| q | In centre console (bottom) |
| q | Removing and installing → Chapter |
| 17 - | Function selection switch 2 -E272- |
| q | In centre console (bottom) |
| q | Removing and installing → Chapter |
| 18 - | Telephone/telematics control unit -J526- |
| q | In electronics box under front seat (right-side) |
| q | Removing and installing → Chapter |
| 19 - | Treble loudspeaker, front left -R20- / treble loudspeaker, front right -R22- |
| q | In doors (top) |
| 20 - | Bass loudspeaker, front left -R21-/bass loudspeaker, front right -R23- |
| q | In doors (bottom) |
| 21 - | Mid-range loudspeaker, front left -R103- / mid-range loudspeaker, front right -R104- |
| q | In dash panel (left and right) |
| 22 - | Additional loudspeaker for telematics -R91- |
| q | In driver's storage compartment |
| q | Removing and installing → Chapter |
