• ‒ Bearing -1- is at the toothed belt end; bearing -4- is at the flywheel end.

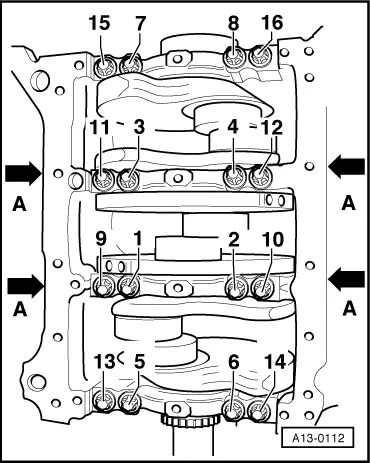

→ Tightening sequence:

• ‒ Stage 1
  Tighten all bolts in the sequence shown (1 - 16) to
  30 Nm.
• ‒ Stage 2
  Tighten all bolts in the sequence shown (1 - 16) to
  60 Nm.
• ‒ Stage 3
  Using a fixed wrench, turn all bolts in the sequence shown (1 - 16) 90° further.
• ‒ Tighten bolts -A- to 25 Nm.
