6-Cylinder engine (5-valve turbo), Mechanics

Dismantling and assembling cylinder block, crankshaft and flywheel

Measuring axial and radial clearance of crankshaft

Axial clearance

Note:

Do not interchange used bearings.

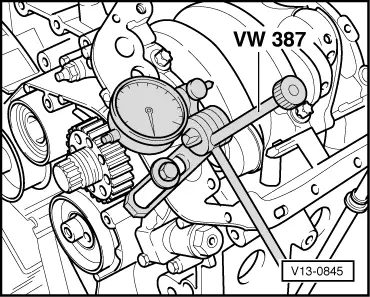

‒ → Attach dial gauge with universal dial gauge bracket VW 387 to oil pump and bring it into contact with crank web.
‒ Press crankshaft against dial gauge by hand and set gauge to -0-.
‒ Press crankshaft away from dial gauge.
‒ Note reading:


Clearance when new	Wear limit
0.090 ... 0.251 mm	0.28 mm

Radial clearance

Measure radial clearance with Plastigage.


Clearance when new	Wear limit
0.018 ... 0.045 mm	0.10 mm
