Removing and installing front brake caliper with brake carrier - FN-3 brakes
Removing and installing front brake caliper with brake carrier - FN-3 brakes
Always use new bolts → ETKA.
Detaching
Special tools and workshop equipment required
t  Torque wrench -V.A.G 1332-
t  Ratchet -V.A.G. 1332/1-
–  Raise the vehicle.
–  Remove wheels.
–  Detach brake hose from bracket.
–  Unplug brake pad wear indicator on brake caliper (left-side).

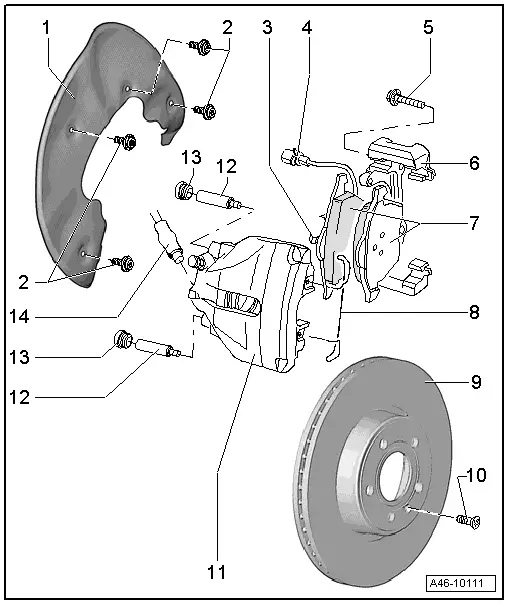

–  Remove bolts -5- on brake carrier.


–  Detach brake carrier with pads and caliper.
Do not leave brake caliper and brake carrier hanging from brake hose but secure them to bodywork using a suitable cable tie or wire. Take care that brake hose is not damaged by weight of brake components.
  WARNING
Do not apply brake when brake caliper is removed.
Installing
Always use new bolts → ETKA.
–  Carefully press brake caliper and brake carrier (with brake pads fitted) over brake disc.
–  Secure brake carrier with new bolts -5-.


–  Fit brake hose in bracket.
–  Fit wheels.
Tightening torque for wheel bolts → Rep. gr.44
–  Lower vehicle.
