A4 Mk3

Renewing bearing bushes and guide pins - FN-3 brakes
Renewing bearing bushes and guide pins - FN-3 brakes
  Note
Mark brake pads when removing them if they are to be reinstalled. Reinstall in their original position to prevent uneven braking.
Removing

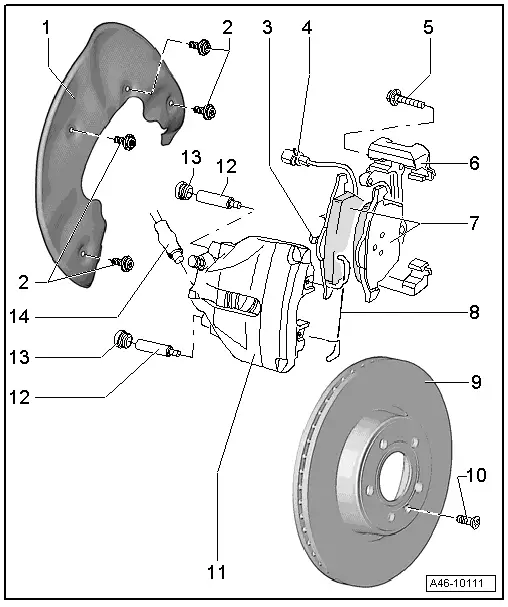

–  Unscrew pins -12- on brake caliper.


–  Detach brake caliper.
Do not leave brake caliper hanging from brake hose but secure it to bodywork using a suitable cable tie or wire. Take care that brake hose is not damaged by weight of brake components.
–  Pull bearing bushes out of brake caliper.
Installing
Installation is carried out in reverse sequence.
–  Use new guide pins.
