Removing and installing gearbox mounting
Removing and installing gearbox mounting

Removing
–  Remove gearbox support together with gearbox mounting → Chapter.

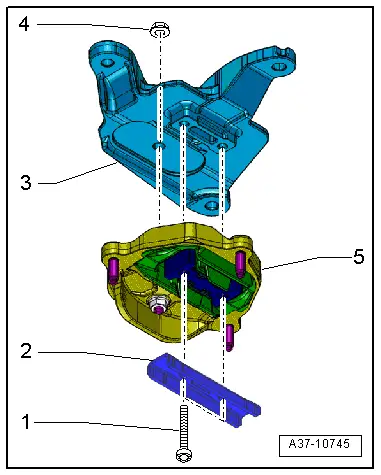

–  Remove bolts -1- and detach stop -2- (bottom) for gearbox mounting.
–  Remove nut -4- and detach gearbox mounting -5- from gearbox support -3-.
Installing
Installation is carried out in reverse sequence; note the following:
l  Tightening torques → Chapter „Exploded view - tunnel cross member, gearbox mounting and gearbox support“
–  Fit gearbox support -3- on gearbox mounting -5-.
–  Hand-tighten nut -4-.
–  Tighten bolts -1- for stop (bottom) -2-.
–  Tighten nut -4-.
–  Install gearbox support with gearbox mounting → Chapter.
  A37-10745
