Removing and installing gearbox support with gearbox mounting
Removing and installing gearbox support with gearbox mounting

Removing
–  Remove tunnel cross member → Chapter.

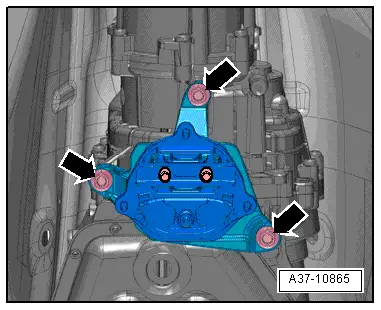

–  Remove bolts -arrows- and detach gearbox support from gearbox together with gearbox mounting.
Installing
Installation is carried out in reverse sequence; note the following:
l  Tightening torques → Chapter „Exploded view - tunnel cross member, gearbox mounting and gearbox support“
–  Install tunnel cross member → Chapter.
  A37-10865
