6-speed manual gearbox 0B1, front-wheel drive (Gearbox identification): Technical data

Make

Audi

Model

A5

Section

6-speed manual gearbox 0B1, front-wheel drive › Technical data › Gearbox identification

Power transmissionGearbox identification

Gearbox identification Allocation: t  → Chapter „Audi A4 2008 ► Code letters, allocation, transmission ratios, capacities“. t  → Chapter „Audi A5 Coupé 2008 ►, Audi A5 Sportback 2010 ► Code letters, allocation, transmission ratios, capacities“ t  → Chapter „Audi A5 Cabriolet 2009 ► Code letters, allocation, transmission ratios, capacities“

Location on gearbox t  -Arrow A- Manual gearbox 0B1 → Fig. t  -Arrow B- Code letters and production date → Fig. t  -Arrow C- Code letters and production date on underside of gearbox housing (not on all versions)

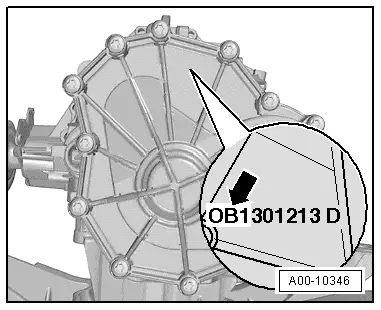

Manual gearbox 0B1 -arrow-

Code letters -arrow A- and production date of gearbox -arrow B-

Example:	JJF	03 08 07
	Code letters	Production date: 03.08.2007

Note t  Additional data are manufacture-related. t  The code letters for the gearbox are also given on the vehicle data stickers.

04 Transmission
